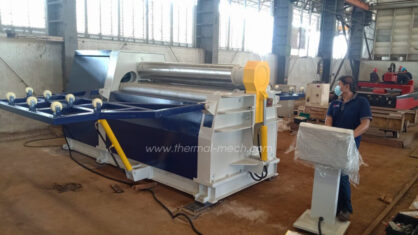

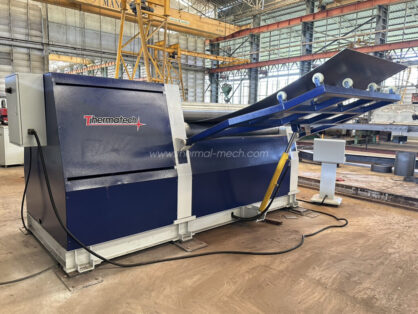

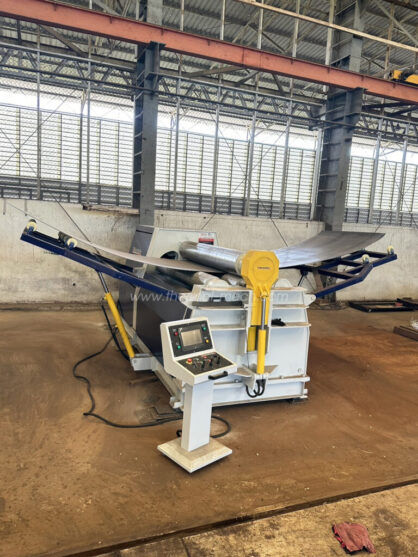

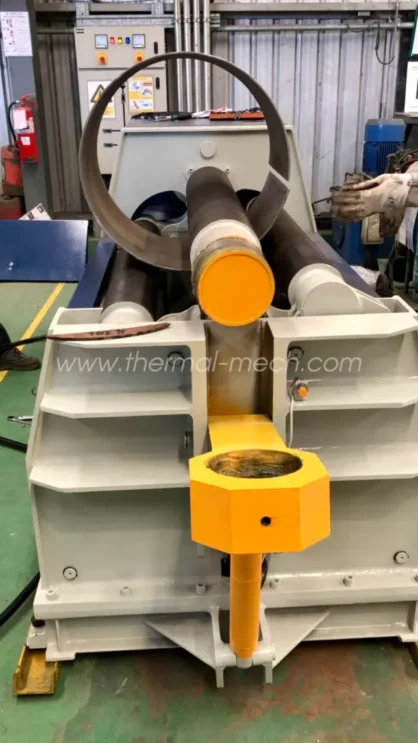

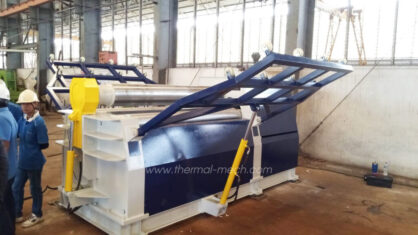

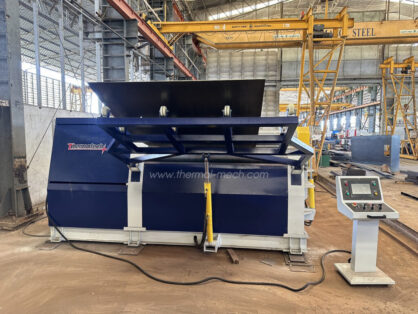

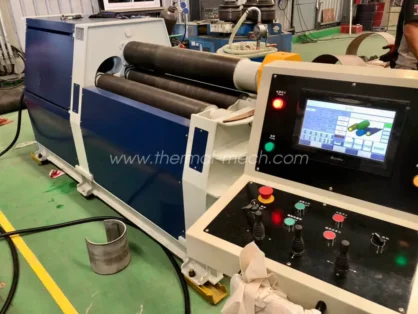

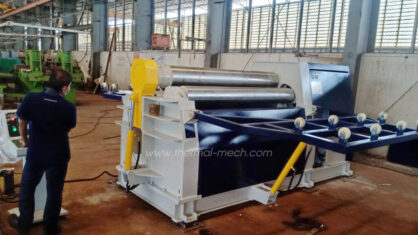

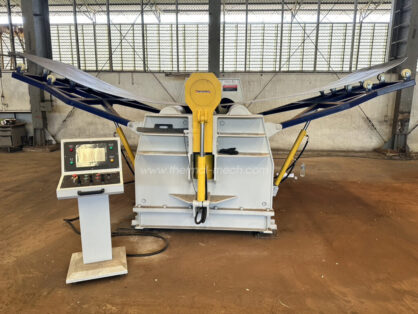

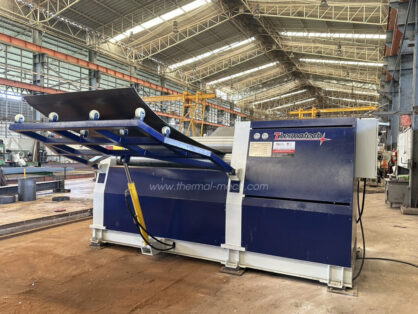

Thermatech 4 Rolls NC Plate Bending Rolls

This four roll plate bending rolls are recognized worldwide as the fastest, safest, most precise and easy to use plate roll available in the all range.
This is a fully hydraulic 4-roll bending machine with pre-bending. Rolls length up to 6.000mm, plate thickness up to 150 mm

This advanced design has the following benefits such as:
(1) Plate is introduced horizontally (and not tilted as on the three roll double pinch)”
(2) Plate is squared instantly against the back roll (reducing risk of a mis-matched end condition of the part)
(3) Requires space only on one side of the machine, where the plate is introduced to the machine
(4) Greatly reduced flat-end (due to better pre-bending) thanks to the clamping roll that can take the edge to the precise tangent points of the top and bottom rolls
(5) It is the fastest machine to roll a can, as it would require only one position for each side bending roll
(6) The entire cylinder can be finished in only one pass (with in a suitable capacity), including pre-bending of the edges
– No need to pre-bend both ends before starting to roll the entire cylinder, as required with a 3 roll
– No need to remove, turn and re-insert the plate as on a 3 roll single pinch
(7) The four roll could be even 50-80% faster and more productive than any style three roll

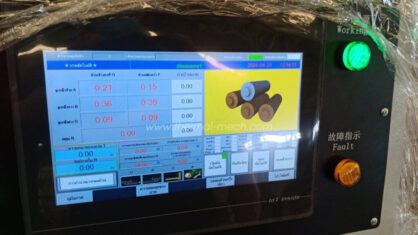

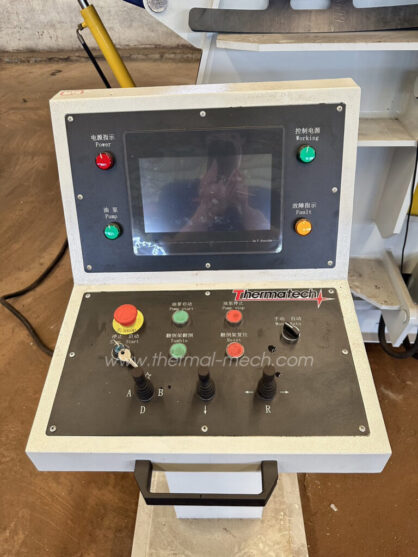

(8) The most suitable for CNC operation, as the plate is under a better control, clamped between the top and bottom rolls, until the part is finished

The four rolls design is recommended for clients who:

Wish to operate through CNC, with less dependence on operator skills
Look for more steady quality of the rolled products.
Look for high productivity, and increased profits.
Require good accuracy and quality improvements.
Need handling equipment for larger plates, who are concerned about production or safety reasons.
Are new to plate rolling, as it is the easiest plate roll to operate.
