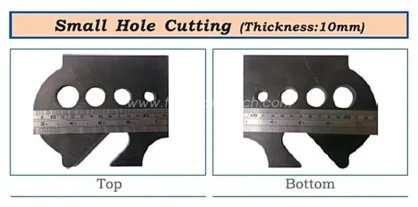

PLASMA CUTTING MACHINE MODEL AP-201X+ SMALL HOLE
Technical Specification
Operating Data
| Material | Current (amps) |
Thickness (mm) |
Approximate cutting speed (mm/min) |
|---|---|---|---|
| Mild Steel Plasma : O2 Shield: Air |
70 | 3 | 5800 |
| 6 | 3000 | ||
| 10 | 1300 | ||
| 100 | 8 | 3200 | |
| 12 | 1500 | ||
| 130 | 9 | 3400 | |
| 12 | 2500 | ||
| 14 | 1680 | ||
| 160 | 12 | 2800 | |
| 16 | 1850 | ||
| 20 | 1200 | ||
| 200 | 12 | 3800 | |
| 16 | 2450 | ||
| 20 | 1900 | ||
| 25 | 1400 | ||
| Mild Steel Plasma : Air Shield: Air |
50 | 1 | 8000 |
| 2 | 4200 | ||
| 4 | 2600 | ||
| 100 | 6 | 3000 | |
| 9 | 1950 | ||
| 12 | 1280 | ||
| 200 | 9 | 3100 | |
| 12 | 2300 | ||
| 16 | 1700 | ||
| 20 | 1250 | ||
| 25 | 1020 | ||
| 32 | 720 | ||
| Stainless Steel Plasma : N2+H35 Shield: None |
200 | 30 | 500 |
| 35 | 410 | ||
| 40 | 300 | ||
| 45 | 210 | ||
| 50 | 150 | ||
| 60 | 120 | ||
| 70 | 60 | ||
| Stainless Steel Plasma : N2+H35 Shield: N2 |
100 | 3 | 2200 |
| 6 | 1700 | ||
| 12 | 800 | ||
| 200 | 9 | 2200 | |
| 16 | 1200 | ||
| 20 | 900 | ||
| 30 | 500 | ||
| Aluminum Plasma : Air Shield: Air |
100 | 6 | 2500 |
| 12 | 1200 | ||
| 16 | 750 | ||
| Marking Plasma : N2 |
17 | 4500 |
Gas Application for Plasma Cutting
| Material | Mild steel | Stainless steel | Aluminum |
|---|---|---|---|
| Pilot gas | Air | N2 | Air or N2 |
| Plasma gas | O2 or Air | N + H34 or N2 | Air or N2 + H35 |
| Shield gas | Air | N2 or None | Air or N2 or None |
AP Series Power Suply Unit Specification
| Input voltage (3-PHABE) and current (Inverter system) |
VAC | Hz | A |
|---|---|---|---|
| 200V | 50/60 | 129 | |
| 220V | 60 | 118 | |
| 380V | 50/60 | 68 | |
| 415V | 50 | 63 | |
| 460V | 50/60 | 56 | |
| Max Output Current | 200A | ||
| Input Power | 45KVA | ||
| Output Power | 36KW | ||
| Maximum OCV | 330~360Vde | ||
| Duty Cyele (40C) | 100% (up to 1 Hr) | ||
| Size (L*W*H) | 1260x640x1190mm | ||
| Weight (Approx.) | 418kg | ||
| Plasma Gas | O2, Air / N2, H35 + N2 | ||
| Shield Gas | Air/ N2/ None | ||
- Description
-
PLASMA CUTTING MACHINE MODEL AP-201X+ SMALL HOLE
Technical Specification
Operating Data
Material Current
(amps)Thickness
(mm)Approximate cutting speed
(mm/min)Mild Steel
Plasma : O2
Shield: Air70 3 5800 6 3000 10 1300 100 8 3200 12 1500 130 9 3400 12 2500 14 1680 160 12 2800 16 1850 20 1200 200 12 3800 16 2450 20 1900 25 1400 Mild Steel
Plasma : Air
Shield: Air50 1 8000 2 4200 4 2600 100 6 3000 9 1950 12 1280 200 9 3100 12 2300 16 1700 20 1250 25 1020 32 720 Stainless Steel
Plasma : N2+H35
Shield: None200 30 500 35 410 40 300 45 210 50 150 60 120 70 60 Stainless Steel
Plasma : N2+H35
Shield: N2100 3 2200 6 1700 12 800 200 9 2200 16 1200 20 900 30 500 Aluminum
Plasma : Air
Shield: Air100 6 2500 12 1200 16 750 Marking
Plasma : N217 4500 Gas Application for Plasma Cutting
Material Mild steel Stainless steel Aluminum Pilot gas Air N2 Air or N2 Plasma gas O2 or Air N + H34 or N2 Air or N2 + H35 Shield gas Air N2 or None Air or N2 or None AP Series Power Suply Unit Specification
Input voltage
(3-PHABE)
and current
(Inverter system)VAC Hz A 200V 50/60 129 220V 60 118 380V 50/60 68 415V 50 63 460V 50/60 56 Max Output Current 200A Input Power 45KVA Output Power 36KW Maximum OCV 330~360Vde Duty Cyele (40C) 100% (up to 1 Hr) Size (L*W*H) 1260x640x1190mm Weight (Approx.) 418kg Plasma Gas O2, Air / N2, H35 + N2 Shield Gas Air/ N2/ None - Gallery
-
