Description

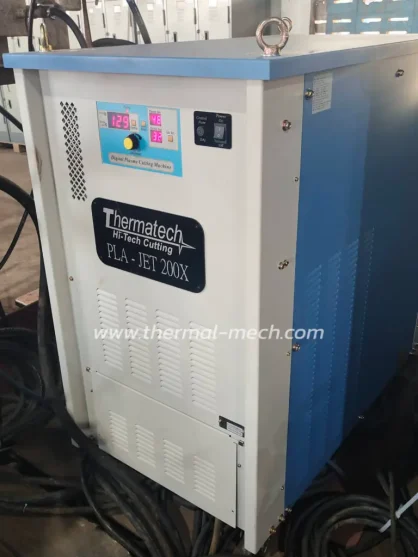

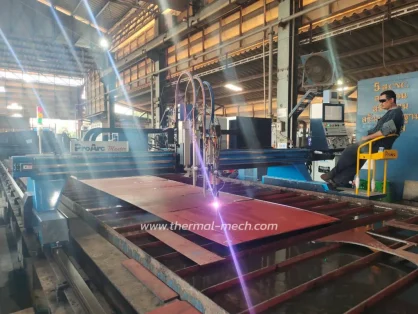

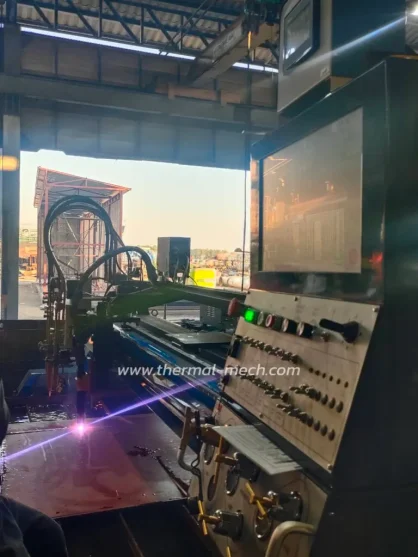

High Density Plasma Cutting Machine – Thermatech Plajet 200
| Model | PLA-JET 200 |
|---|---|
| Input Voltage 3Ph | 220Vac 60Hz./380/415 Vac 50/60 Hz. |
| Max. Output Current | 200 Amps |
| Input Power | 45 KVA |
| Open Circuit Voltage | 330 Vdc – 360 Vdc |
| Duty Cycle (40°C) | 100% dc 2Hr. |
| Power Supply Size | 1,260 mm x 960 mm x 1,190 mm |
| Power Source Weight | 585 Kgs |
| Plasma Gas | Compressed Air |
| Shield Gas | Compressed Air |
| Input Gas Pressure | 6.0 bar – 6.5 bar |
| Ignition method | HF ignition |

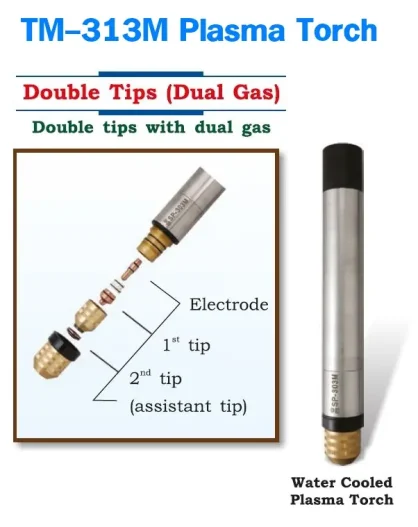

| Torch Cooling | Water Cooled |
- Description
-
High Density Plasma Cutting Machine – Thermatech Plajet 200
Model PLA-JET 200 Input Voltage 3Ph 220Vac 60Hz./380/415 Vac 50/60 Hz. Max. Output Current 200 Amps Input Power 45 KVA Open Circuit Voltage 330 Vdc – 360 Vdc Duty Cycle (40°C) 100% dc 2Hr. Power Supply Size 1,260 mm x 960 mm x 1,190 mm Power Source Weight 585 Kgs Plasma Gas Compressed Air Shield Gas Compressed Air Input Gas Pressure 6.0 bar – 6.5 bar Ignition method HF ignition Torch Cooling Water Cooled - Gallery
-
