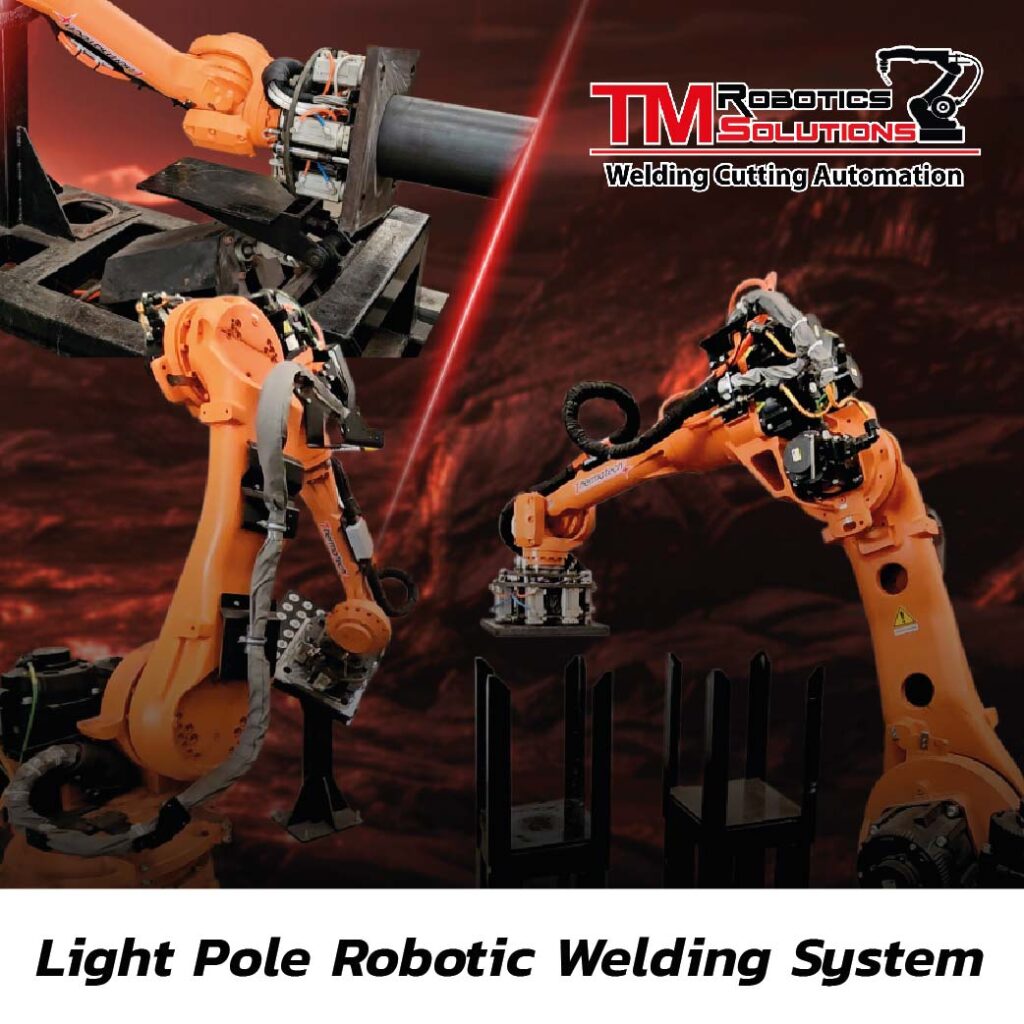

Automated Light Pole Robotic Welding System
High-Speed Infrastructure Fabrication: Automated Light Pole Robotic Welding System
In the production of street light poles, high mast towers, traffic signal posts, and tapered steel columns, the longitudinal seam welding process dictates both your factory’s output speed and structural safety margins. Relying on manual welding or basic setups for extra-long columns often triggers production bottlenecks, material warping from uneven heat distribution, and lengthy cycle times.
The Thermatech Light Pole Robotic Welding System is an all-in-one, high-performance automation line engineered to eliminate these constraints. By integrating raw material feeding arrays, heavy-duty hydraulic clamping/pressing rolls, and intelligent multi-axis seam tracking, this turnkey system automates the long continuous seam welding of round, conical, and multi-sided (hexagonal/octagonal) tapered steel poles with uncompromised precision and speed.
Key Features & Engineering Capabilities
- Continuous Longitudinal Seam Tracking: The Light Pole Robotic Welding System executes smooth, uninterrupted long-span welds from the base to the narrow tip of the pole in a single pass.
- Heavy-Duty Synchronized Clamping Rolls: Features highly responsive hydraulic pressing wheels that automatically close the forming gap of the rolled steel plate before welding, eliminating gaps and preventing structural twisting.
- Real-Time Weld Seam Tracking (Sensors): Equipped with advanced laser or tactile seam tracking sensors that scan the joint interface in real time, guiding the torch accurately along the seam even if the rolled steel profile is slightly uneven.
- Multi-Profile Adaptability: Easily reconfigure settings to accommodate various pole heights, wall thicknesses, and cross-sections, including round, tapered conical, 6-sided, and 8-sided layouts.
- High-Deposition Welding Integration: Seamlessly works with Submerged Arc Welding (SAW) for thick-walled high masts requiring deep penetration, or Gas Metal Arc Welding (GMAW/MIG) for high-speed, thin-walled street light poles.
Strategic Business Benefits
- Massive Production Yield Expansion: Cuts overall manufacturing time per pole by over 50% compared to traditional semi-automatic or manual tracking methods.
- 100% Code-Compliant Structural Integrity: Delivers uniform, deeply penetrated weld profiles capable of passing strict non-destructive testing (NDT), perfect for government infrastructure tenders.
- Zero-Rework Efficiency: Eliminates torch misalignment and burn-through defects, cutting out hundreds of hours previously wasted on post-weld manual chipping, grinding, and patching.
- Optimized Shop Floor Safety: Protects operators from intense heat, arcs, and fumes by transitioning their role to a safe, centralized human-machine interface (HMI).
Applications
- Infrastructure construction industries, such as utility poles and communication towers
- Manufacturing facilities requiring high precision
- Welding tasks in areas that are difficult for human access
The utility pole base welding robot significantly improves efficiency, reduces costs, and enhances safety in the infrastructure industry.
Targeted Industry Applications
This specialized structural machinery setup is optimized for facilities supplying components for:
- Municipal Street Lighting and Highway Illumination Poles
- High Mast Lighting Towers (Ports, Airports, and Stadiums)
- Telecommunication and Traffic Control Signal Posts
- Tapered Steel Distribution and Transmission Columns
- Description
-
Automated Light Pole Robotic Welding System
High-Speed Infrastructure Fabrication: Automated Light Pole Robotic Welding System
In the production of street light poles, high mast towers, traffic signal posts, and tapered steel columns, the longitudinal seam welding process dictates both your factory’s output speed and structural safety margins. Relying on manual welding or basic setups for extra-long columns often triggers production bottlenecks, material warping from uneven heat distribution, and lengthy cycle times.
The Thermatech Light Pole Robotic Welding System is an all-in-one, high-performance automation line engineered to eliminate these constraints. By integrating raw material feeding arrays, heavy-duty hydraulic clamping/pressing rolls, and intelligent multi-axis seam tracking, this turnkey system automates the long continuous seam welding of round, conical, and multi-sided (hexagonal/octagonal) tapered steel poles with uncompromised precision and speed.
Key Features & Engineering Capabilities
- Continuous Longitudinal Seam Tracking: The Light Pole Robotic Welding System executes smooth, uninterrupted long-span welds from the base to the narrow tip of the pole in a single pass.
- Heavy-Duty Synchronized Clamping Rolls: Features highly responsive hydraulic pressing wheels that automatically close the forming gap of the rolled steel plate before welding, eliminating gaps and preventing structural twisting.
- Real-Time Weld Seam Tracking (Sensors): Equipped with advanced laser or tactile seam tracking sensors that scan the joint interface in real time, guiding the torch accurately along the seam even if the rolled steel profile is slightly uneven.
- Multi-Profile Adaptability: Easily reconfigure settings to accommodate various pole heights, wall thicknesses, and cross-sections, including round, tapered conical, 6-sided, and 8-sided layouts.
- High-Deposition Welding Integration: Seamlessly works with Submerged Arc Welding (SAW) for thick-walled high masts requiring deep penetration, or Gas Metal Arc Welding (GMAW/MIG) for high-speed, thin-walled street light poles.
Strategic Business Benefits
- Massive Production Yield Expansion: Cuts overall manufacturing time per pole by over 50% compared to traditional semi-automatic or manual tracking methods.
- 100% Code-Compliant Structural Integrity: Delivers uniform, deeply penetrated weld profiles capable of passing strict non-destructive testing (NDT), perfect for government infrastructure tenders.
- Zero-Rework Efficiency: Eliminates torch misalignment and burn-through defects, cutting out hundreds of hours previously wasted on post-weld manual chipping, grinding, and patching.
- Optimized Shop Floor Safety: Protects operators from intense heat, arcs, and fumes by transitioning their role to a safe, centralized human-machine interface (HMI).
Applications
- Infrastructure construction industries, such as utility poles and communication towers
- Manufacturing facilities requiring high precision
- Welding tasks in areas that are difficult for human access
The utility pole base welding robot significantly improves efficiency, reduces costs, and enhances safety in the infrastructure industry.
Targeted Industry Applications
This specialized structural machinery setup is optimized for facilities supplying components for:
- Municipal Street Lighting and Highway Illumination Poles
- High Mast Lighting Towers (Ports, Airports, and Stadiums)
- Telecommunication and Traffic Control Signal Posts
- Tapered Steel Distribution and Transmission Columns
- Gallery
-
- Video
-
Investing in a Thermatech Light Pole Robotic Welding System is the ultimate upgrade for manufacturers looking to capture high-volume infrastructure projects. By replacing slow manual clamping and tracking with a synchronized, automated workflow, your plant secures faster project deliveries, predictable operating costs, and a premium product standard that stands out in the international marketplace.
🌏Website: www.thermal-mech.com
📧Email: sales@thermal-mech.com
☎️Tel: 02-759-4795 หรือ 064-253-6405
#หุ่นยนต์หยิบจับ #gantry #robotgantry #หุ่นยนต์เชื่อมตัด #หุ่นยนต์ตัด #โรบอทเชื่อมตัด #โรบอทตัด #ระบบหุ่นยนต์อัตโนมัติ #cuttingrobot #TMroboticssolutions #เทอร์มอลแมคคานิคส์ #Hypertherm #Plasmabeveling #robotwelding #robotplasma #หุ่นยนต์แขนกล #ThermalMechanics
FAQ: Frequently Asked Questions
Q: What is the maximum pole length supported by this Light Pole Robotic Welding System?
A: Our standard automated line configuration effortlessly processes industry-standard pole lengths ranging from 3 meters up to 12 meters. However, the track frame, conveyor layouts, and support beds can be custom-extended to align perfectly with your facility’s specific space constraints and heavy-duty fabrication requirements.
Q: How does the system manage clamping when a pole tapers from a wide base to a narrow tip?
A: This is a core advantage of our engineering setup. The synchronized pneumatic/hydraulic pressing rolls adjust their clamping force and physical clearance dynamically as the diameter of the tapered steel pole changes, keeping the joint tightly closed while the welding torch tracks smoothly along the seam.
Q: What range of steel plate thicknesses can this system handle?
A: The system comfortably accommodates structural sheet steel thicknesses ranging from 3 mm up to 8 mm or more. The ultimate thickness capacity depends on your chosen configuration, such as heavy-duty Submerged Arc Welding (SAW) or high-speed MIG/MAG power setups.
