ORiSK fume extractor for Fiber laser cutting machine model ORKSDC-860X
Description
- ORiSK Fume extracrtor ORKSDC-860X series has high peower extraction
- ORiSK Fume extracrtor ORKSDC-860X series has ≥0.1um filerting precision with 99.9% efficeincy
- ORiSK Fume extracrtor ORKSDC-860X series has large filtering area
- ORiSK Fume extracrtor ORKSDC-860X filter unit has ling service life
- ORiSK Fume extracrtor ORKSDC-860X operation control is easy to realize by PLC touch screen device
- ORiSK Fume extracrtor ORKSDC-860X has automatic filter cleaing function to maintain filtering system
Application
- Fiber laser cutting machine
- Plasma cutting machine
- Welding and Grinding station

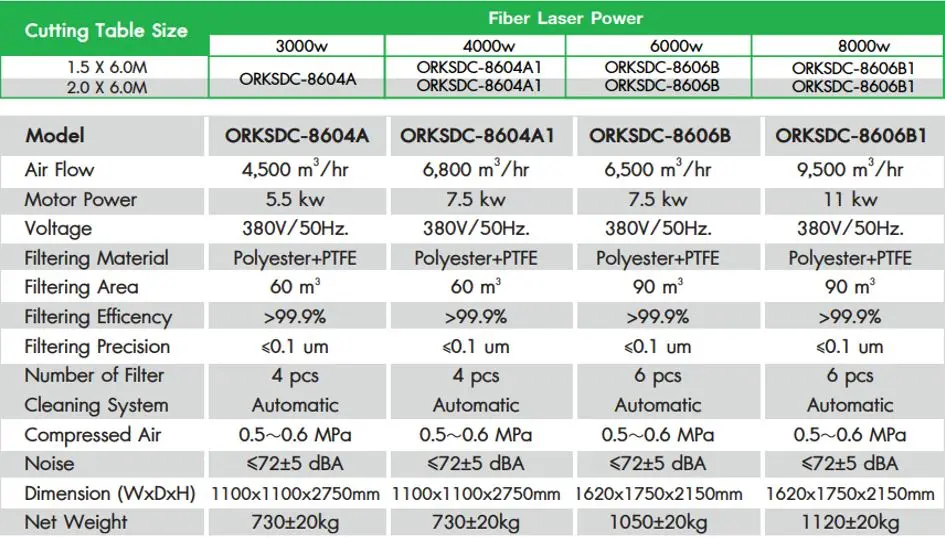

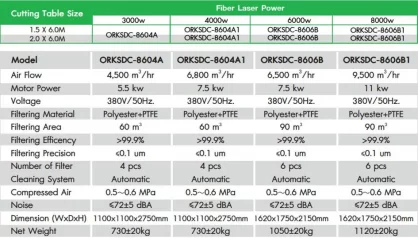

Matching table for Fiber cutting machine
| Cutting Table Size | Fiber Laser Power | |||
|---|---|---|---|---|
| 3000w | 4000w | 6000w | 8000w | |
| 1.5 x 6.0 M
2.0 x 6.0 M |
ORKSDC-8604A | ORKSDC-8604A1
ORKSDC-8604A1 |
ORKSDC-8606B
ORKSDC-8606B |
ORKSDC-8606B1
ORKSDC-8606B1 |
| Model | ORKSDC-8604A | ORKSDC-8604A1 | ORKSDC-8606B | ORKSDC-8606B1 |
| Air Flow | 4,500 m³/hr | 6,800 m³/hr | 6,500 m³/hr | 9,500 m³/hr |
| Motor Power | 5.5 kw | 7.5 kw | 7.5 kw | 11 kw |
| Voltage | 380V/50Hz. | 380V/50Hz. | 380V/50Hz. | 380V/50Hz. |
| Filtering Material | Polyester+PTFE | Polyester+PTFE | Polyester+PTFE | Polyester+PTFE |
| Filtering Area | 60 m³ | 60 m³ | 90 m³ | 90 m³ |
| Filtering Efficency | >99.9% | >99.9% | >99.9% | >99.9% |
| Filtering Precision | ≤0.1 um | ≤0.1 um | ≤0.1 um | ≤0.1 um |
| Number of Filter Cleaning System |
4 pcs Automatic | 4 pcs Automatic | 6 pcs Automatic | 6 pcs Automatic |
| Compressed Air | 0.5~0.6 MPa | 0.5~0.6 MPa | 0.5~0.6 MPa | 0.5~0.6 MPa |
| Noise | ≤72±5 dBA | ≤72±5 dBA | ≤72±5 dBA | ≤72±5 dBA |
| Dimension (WxDxH) | 1100x1100x2750mm | 1100x1100x2750mm | 1620x1750x2150mm | 1620x1750x2150mm |
| Net Weight | 730±20kg | 730±20kg | 1050±20kg | 1120±20kg |
