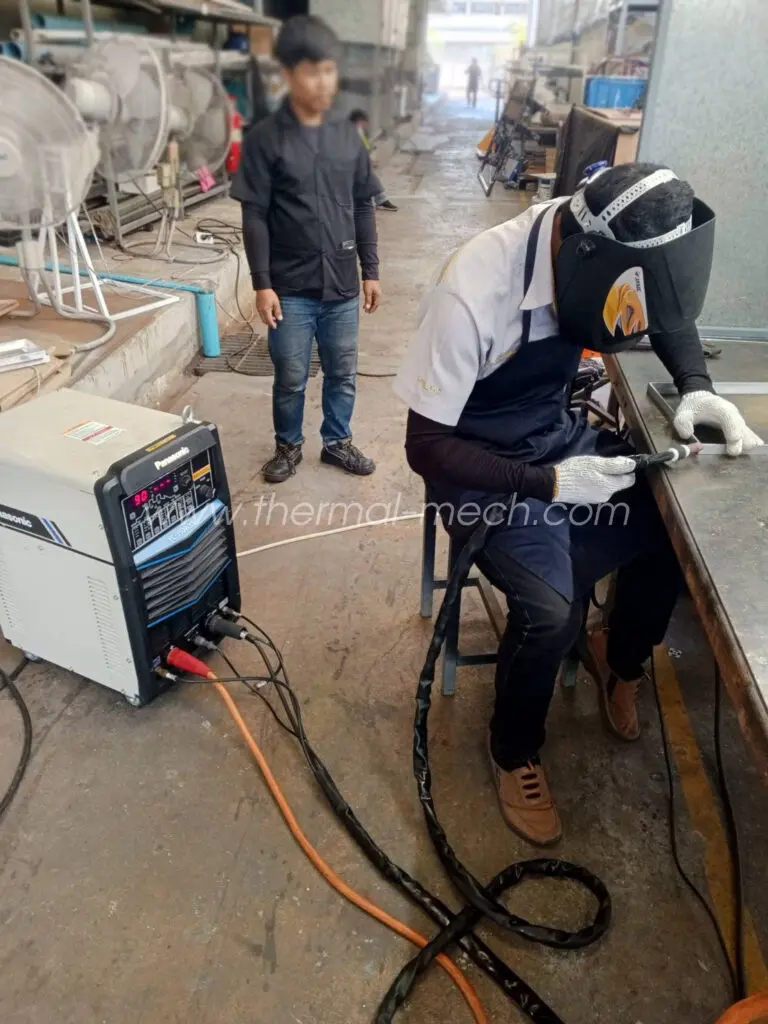

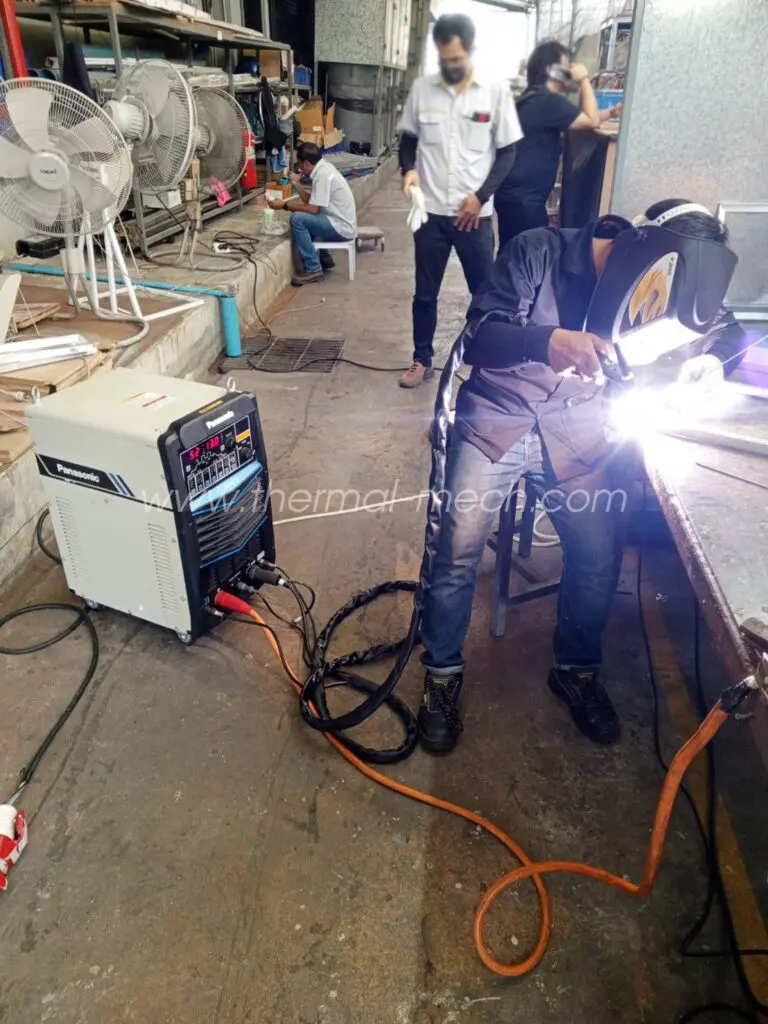

Panasonic Inverter TIG AC/DC Welding Machine YC-350WX5

Twin Inverter Control AC/DC TIG Welding Machines
High-Performance Models for Producing High-Quality Welds on a Variety of Materials.

category Welding Machine > Panasonic Welding Machine, Products, Welding Machine

Description

Power source specifications

Model		YC-350WX5	YC-500WX5
Control method	–	Digital IGBT control
Rated input Power supply and number of phases	–	3-Phase AC 380 V +20%
Input power frequency	Hz	50/60
Rated input capacity	KVA/KW	16.6/13.5	29.5/22.5
Rated output No-load voltage	V	DC 62	DC 70
Roted output current	A	To Stick 300	TIG 500 MMA 400
Roted output voltage	V	To Stick 32	TIG 500 MMA 400
Rated duty cycle	%	35	60
Output current range	A	Stick	DC TIG 5-500 AC TIG 20-500 MMA 20-400
Output voltage range	V	Stick	TIG 10.2-30 MMA 20.2-36
Pulse current	A	DC TIG 4-350 AC TIG 10-350	DC TIG 5-500 AC TIG 20-500
Pulse frequency	Hz	0.1-500
Memory	–	100 channels for storing and recalling
Shieding gos	–	Ar: 99.99% or higher
Up-slope lime	s	0-20 continuous adjustment (0.1 increment)
Down-slope time	s	0-20 continuous adjustment (0.1 increment)
Gas pre-flow time	s	0-30 continuous adjustment (0.1 increment)
Gos otter-flow time	s	0-30 continuous adjustment (0.1 increment)
AC frequency (AC TIG)	Hz	30-100 (factory setting: 70)
Input power terminal	–	Terminal block (for 3 phases, M5 bolts)
Output terminal	–	Fast plug	Bolt fastening method
Enclosure closs	–	IP23S
Insulation class	–	200’C
cooling method	–	Forced air cooling
Dimensions (LxWxH)	mm	560x380x730	730x380x875
Weight	Kg	74	128

WX5
Twin Inverter Control AC/DC TIG Welding Machines

High-Performance Models for Producing High-Quality Welds on a Variety of Materials.

Various Welding Modes for High Quality Welding

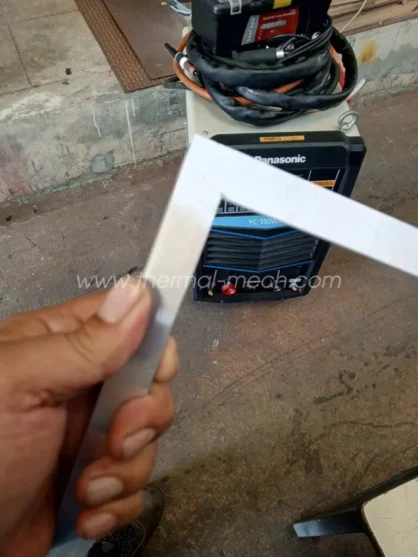

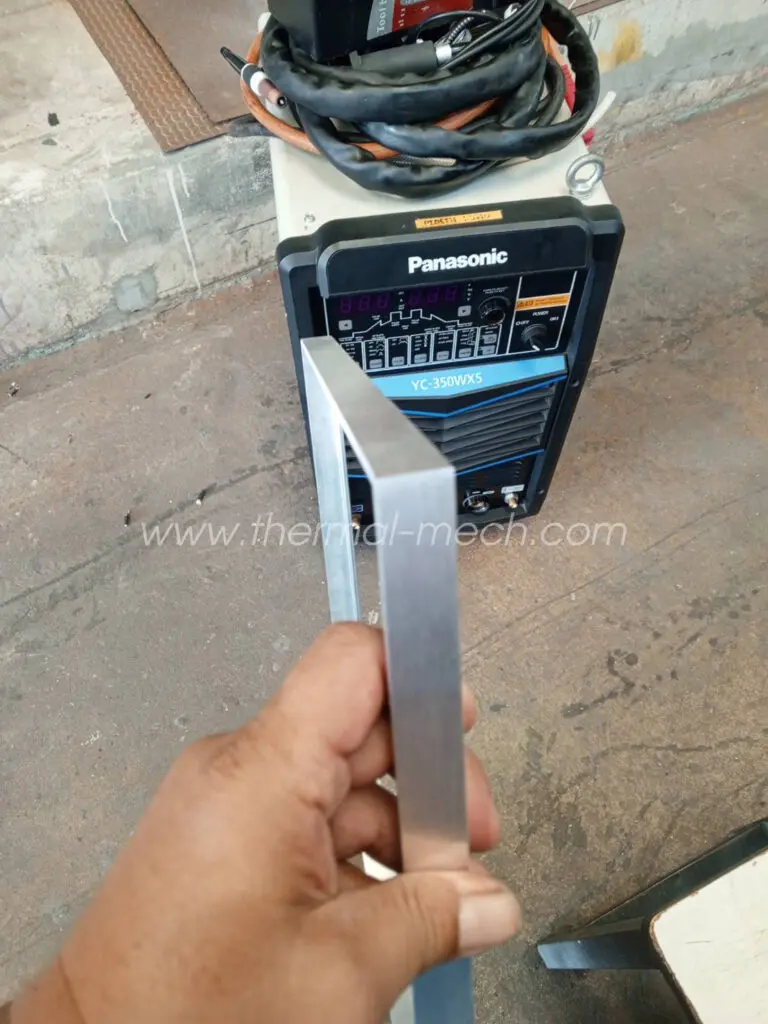

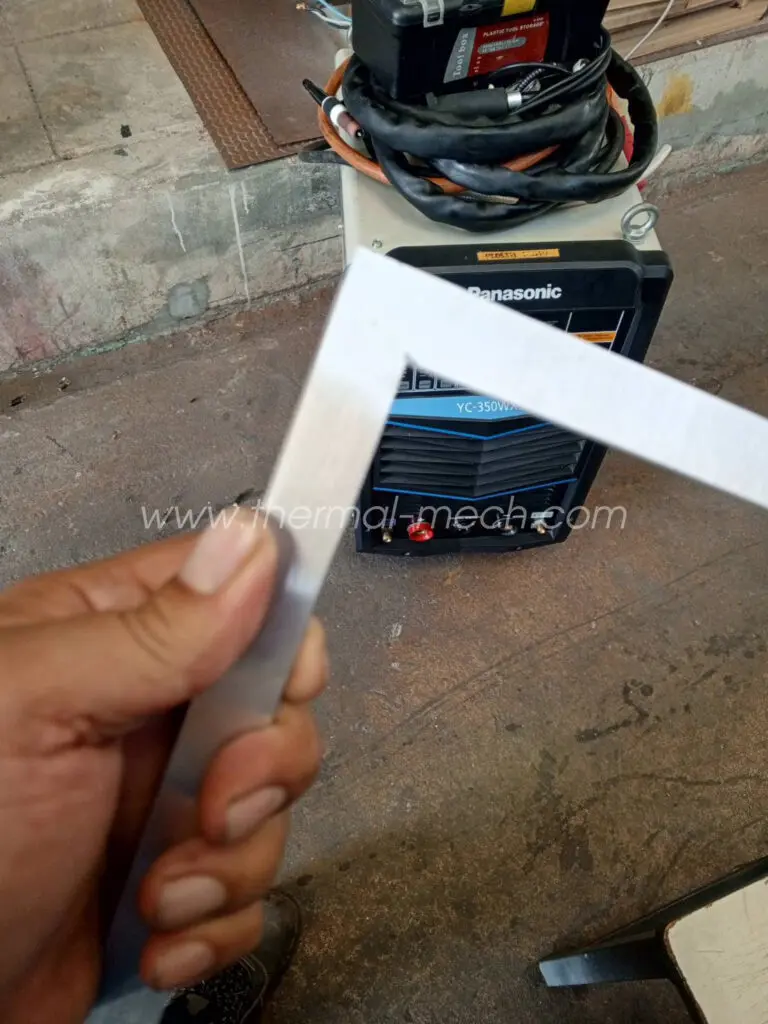

Twin inverter control and adjustable AC output for welding a wide variety of aluminum workpieces.

High AC output frequency produces a concentrated arc.
-Ideal for welding hard aluminum (No.6OOO and 7000 of JIS) and aluminum bronze.

Low AC output frequency makes it possible to weld a wide range of workpieces such as thin plates, thick plates and aluminum alloys.

Various welding modes for various workpieces

Mix TIG welding
-A concentrated arc is ideal for lap welding of thin aluminum plates.
-Combination of AC and DC TIG allows deep penetration and significantly reduces electrode consumption

AC standard TIG welding
-Allows you to weld a wide variety of materials from thin to thick plates.
AC soft TIG welding
-Produces a soft arc with low noise.
AC hard TIG welding
-Produces a concentrated arc.
-Great for gap welding of thin plates
