Description

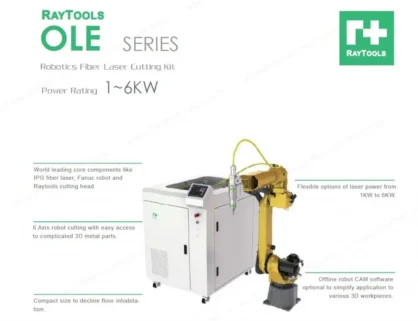

Robot laser cutting system

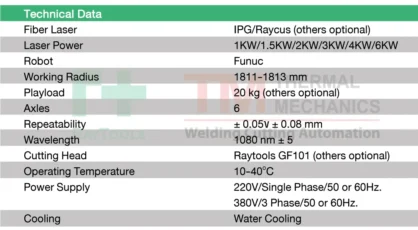

| Technical Data | |
|---|---|
| Fiber Laser | IPG/Raycus (others optional) |
| Laser Power | 1KW/1.5KW/2KW/3KW/4KW/6KW |
| Robot | Funuc |
| Working Radius | 1811-1813 mm |
| Playload | 20 kg (others optional) |
| Axles | 6 |
| Repeatability | ± 0.05 ± 0.08 mm |
| Wavelength | 1080 nm + 5 |
| Cutting Head | Raytools GF101 (others optional) |
| Operating Temperature | 10-40 C |
| Power Supply | 220V/Single Phase/50 or 60Hz. 380V/3 Phase/50 or 60Hz. |
| Cooling | Water Cooling |
