Description
CNC cutting machine – Plasma and flame cutting
model Thundercut 4000

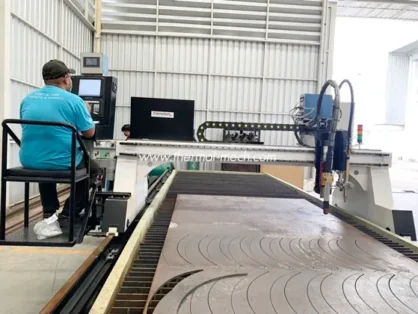

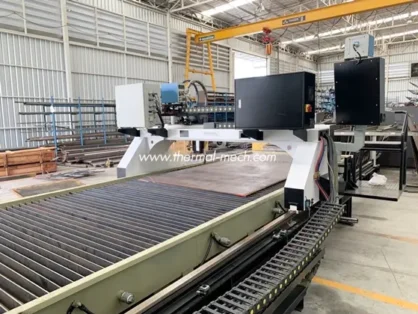

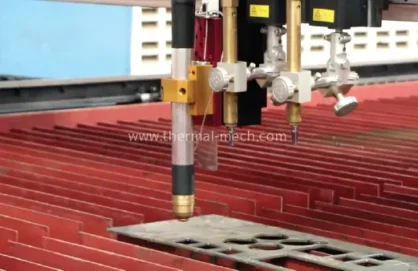

The Thundercut 4000 CNC Cutting Machine from Thermatech is a standard cutting solution designed for metal cutting applications using plasma and oxy-fuel (gas) cutting processes.
It supports a large cutting area of 3.5 meters × 6.1 meters or larger, and is equipped with an automatic torch height control (THC) system for consistent cutting quality.

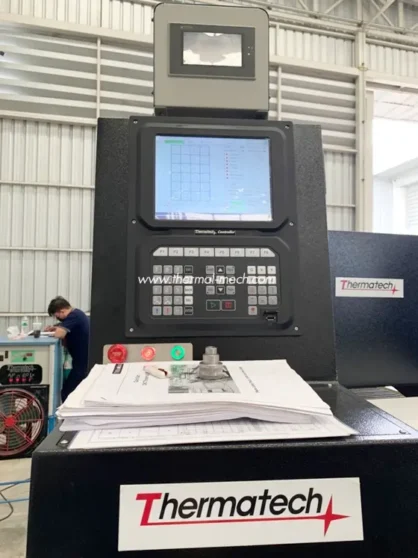

The system comes complete with cutting software and a full set of cutting consumables, enabling immediate operation.

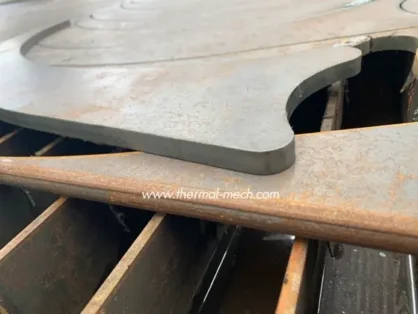

It is capable of cutting a wide range of metals at a maximum cutting speed of up to 8,000 mm/min.

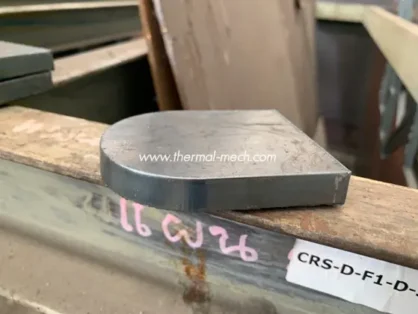

The machine supports cutting thicknesses of up to 16 mm for plasma cutting and up to 100 mm for oxy-fuel (gas) cutting.
Specification
| Model | Thundercut 4000 |
| Input Voltage | 220 V / Single Phase / 50 Hz. |
| Rail Width | 4,000 mm. |
| Effective Cutting Width | 3,600 mm. |
| Effective Cutting Length | 6,100 mm. |
| Maximum Traversing Speed | 8,000 mm./min. |
| Maximum Cutting Speed | 6,000 mm./min |
| Longitudinal Drive System | Rack & Pinion |
| Transverse Drive System | Rack & Pinion |
| Number of Longitudinal Drive Units | Dual Drive |
| Longitudinal Rail System | Industry Grade I Rail |
| Transverse Rail System | Double Linear Guide |
| Total Rail Length | 4,585 mm, |
| Overall Width | 4,230 mm. |
| Overall Height | 1,577 mm. |
| Weight | 1,700 kg. |
