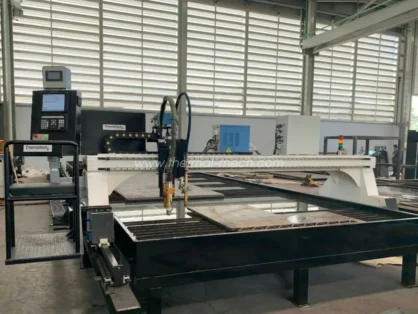

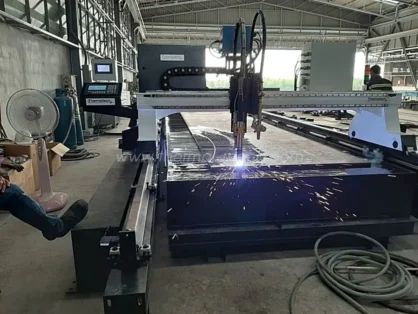

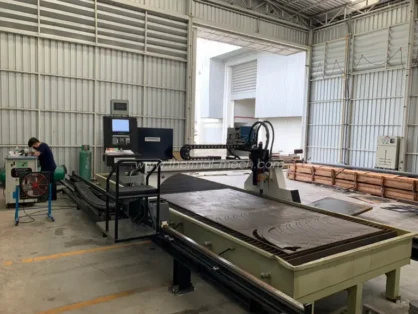

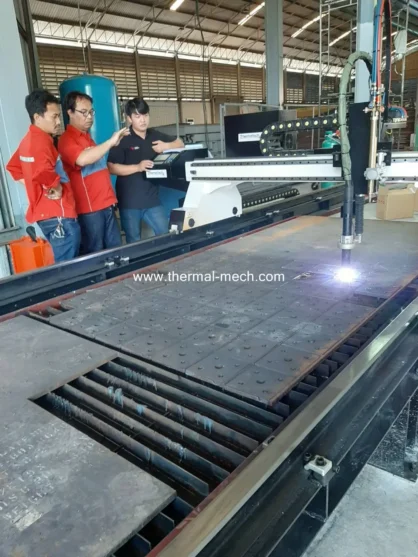

Thermatech CNC Plasma and Gas Cutting Machine model Thundercut 510

The Thundercut 510 CNC Cutting Machine from Thermatech is a standard cutting solution designed for metal cutting applications using plasma and oxy-fuel (gas) cutting processes.

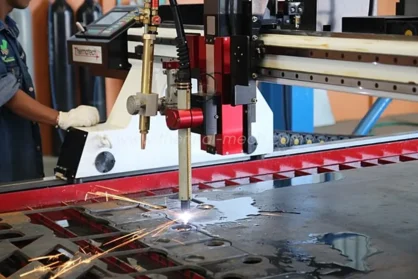

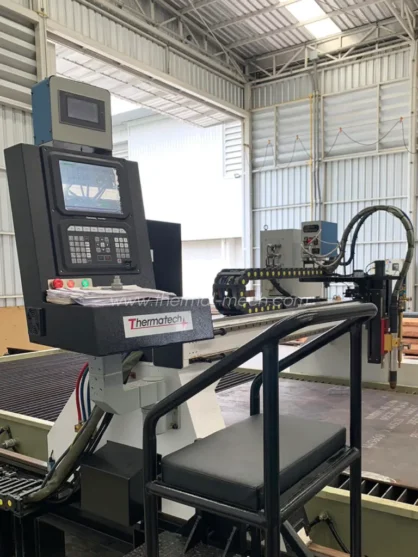

It supports a cutting area of 5 × 10 feet and is equipped with an automatic torch height control (THC) system, along with cutting software and a complete set of cutting consumables.

categoryCutting Machine, Cutting Machine > Plasma Cutting Machine, Products, Cutting Machine > Plasma Cutting Machine > Thermatech Plasma Cutting Machine

Thermatech CNC Plasma and Gas cutting machine model Thundercut 510

The Thundercut 510 CNC Cutting Machine from Thermatech is a standard cutting solution designed for metal cutting applications using plasma and oxy-fuel (gas) cutting processes.
It supports a cutting area of 5 × 10 feet and is equipped with an automatic torch height control (THC) system, along with cutting software and a complete set of cutting consumables.
The machine is capable of cutting a wide variety of metals at a maximum cutting speed of up to 8,000 mm/min.

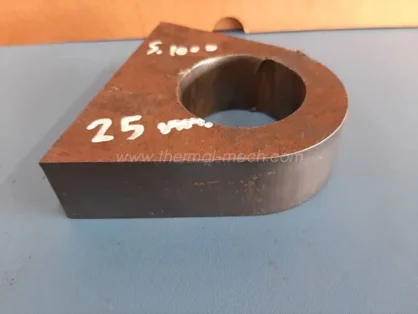

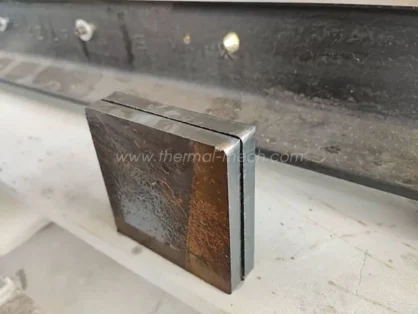

It supports cutting thicknesses of up to 16 mm for plasma cutting and up to 100 mm for oxy-fuel (gas) cutting.

Model	Thundercut 510
Power Input	220 V Single Phase/50Hz.
Rail Gauge	1,750 mm.
Max. Cutting Width	1,600 mm
Max. Travel Speed	8,000 mm./min.
Max. Cutting Speed	6,000 mm./min.
Longitudinal Drive	Rack and Pinion
Cross Direction Drive	Rack and Pinion
Longitudinal Rail	Double Linear Guide
Cross Direction Drive	Double Linear Guide
Overall Rail Length	4,000 mm.
Overall Width	2,450 mm.
Overall Height	1,130 mm.
Weight	750 kg.

Description

Thermatech CNC Plasma and Gas cutting machine model Thundercut 510

The Thundercut 510 CNC Cutting Machine from Thermatech is a standard cutting solution designed for metal cutting applications using plasma and oxy-fuel (gas) cutting processes.
It supports a cutting area of 5 × 10 feet and is equipped with an automatic torch height control (THC) system, along with cutting software and a complete set of cutting consumables.
The machine is capable of cutting a wide variety of metals at a maximum cutting speed of up to 8,000 mm/min.
It supports cutting thicknesses of up to 16 mm for plasma cutting and up to 100 mm for oxy-fuel (gas) cutting.

Model	Thundercut 510
Power Input	220 V Single Phase/50Hz.
Rail Gauge	1,750 mm.
Max. Cutting Width	1,600 mm
Max. Travel Speed	8,000 mm./min.
Max. Cutting Speed	6,000 mm./min.
Longitudinal Drive	Rack and Pinion
Cross Direction Drive	Rack and Pinion
Longitudinal Rail	Double Linear Guide
Cross Direction Drive	Double Linear Guide
Overall Rail Length	4,000 mm.
Overall Width	2,450 mm.
Overall Height	1,130 mm.
Weight	750 kg.
