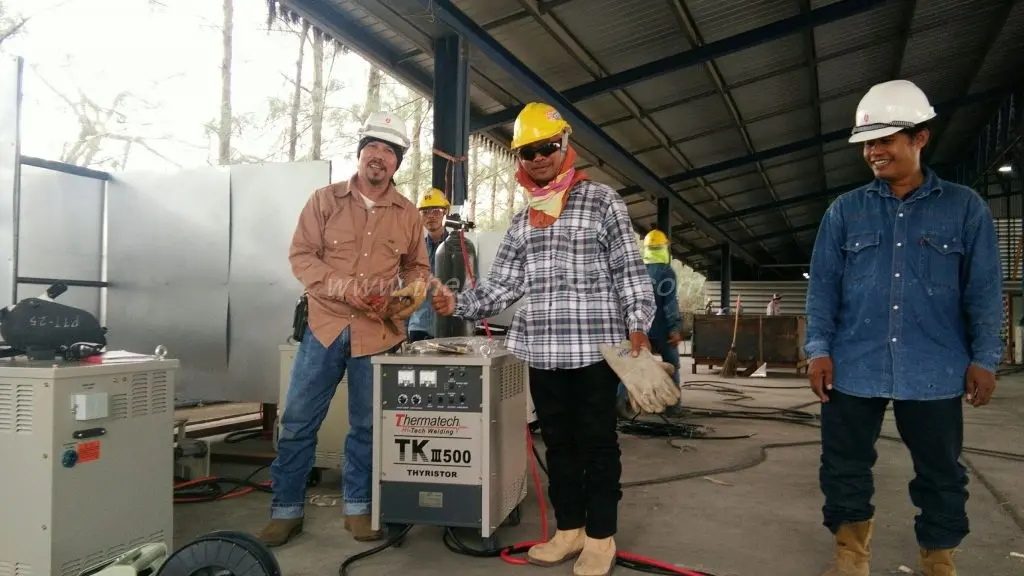

CO2 welding machine model TKIII-500
CO2 welding machine model TKIII-500
- The plug welding cores rollout
- Hot start circuit, easy to start the arc to welding
- The function compensates for the long arc make arc continues with less spatter.
Welding Machine > MIG/MAG/FCAW Welding Machine 250A/350A/500A, Products, Welding Machine
Description
CO2 welding machine model TKIII-500
- The plug welding cores rollout
- Hot start circuit, easy to start the arc to welding
- The function compensates for the long arc make arc continues with less spatter.
- Input voltage 10% if the input voltage irrigularly it can still work
- Good welding performance
- SCR control system
- Fully equipped wire feeder, welding Guns, ground wire, CO2 Regulator, welding mask , consumable spare parts for the initial deployment.
Technical Data
| Model |
TKIII 350 |
TKIII 500 |
| Input voltage/frequency |
Three phase 380V 10% 50Hz |
| Rated input current (A) |
28.1 |
48.4 |
| Rated input power (KVA) |
18.5 |
32 |
| Rated no-load voltage (V) |
50 |
65 |
| Rated output voltage (V) |
32 |
39 |
| Adjustment range of output voltage (V) |
15-35 |
16-45 |
| Adjustment range of output current (A) |
60-350 |
80-500 |
| Wire feeding speed range (M/min) |
2-25 |
2-25 |
| Wire diameter (mm) |
0.8/1.0/1.2 |
1.2/1.4/1.6 |
| Suitable welding wire specifications |
Solid wire /flux core |
Solid wire /flux core |
| Wire feed type |
Push wire |
Push wire |
| Welding gun cooling method |
Gas cooling |
Gas cooling |
| Rated duty cycle (%) |
60% |
60% |
| Efficiency |
0.9 |
0.9 |
| Power factor |
0.85 |
0.85 |
| Insulation grade |
F |
F |
| Shell protection grade |
IP21S |
IP21S |
| Cooling method |
Air cooling |
Air cooling |
| Dimension L x W x H (mm) |
700x385x760 |
700x440x780 |
| Net weight (Kg) |
125 |
157 |
-
Description
-
CO2 welding machine model TKIII-500
- The plug welding cores rollout
- Hot start circuit, easy to start the arc to welding
- The function compensates for the long arc make arc continues with less spatter.
- Input voltage 10% if the input voltage irrigularly it can still work
- Good welding performance
- SCR control system
- Fully equipped wire feeder, welding Guns, ground wire, CO2 Regulator, welding mask , consumable spare parts for the initial deployment.
Technical Data
| Model |
TKIII 350 |
TKIII 500 |
| Input voltage/frequency |
Three phase 380V 10% 50Hz |
| Rated input current (A) |
28.1 |
48.4 |
| Rated input power (KVA) |
18.5 |
32 |
| Rated no-load voltage (V) |
50 |
65 |
| Rated output voltage (V) |
32 |
39 |
| Adjustment range of output voltage (V) |
15-35 |
16-45 |
| Adjustment range of output current (A) |
60-350 |
80-500 |
| Wire feeding speed range (M/min) |
2-25 |
2-25 |
| Wire diameter (mm) |
0.8/1.0/1.2 |
1.2/1.4/1.6 |
| Suitable welding wire specifications |
Solid wire /flux core |
Solid wire /flux core |
| Wire feed type |
Push wire |
Push wire |
| Welding gun cooling method |
Gas cooling |
Gas cooling |
| Rated duty cycle (%) |
60% |
60% |
| Efficiency |
0.9 |
0.9 |
| Power factor |
0.85 |
0.85 |
| Insulation grade |
F |
F |
| Shell protection grade |
IP21S |
IP21S |
| Cooling method |
Air cooling |
Air cooling |
| Dimension L x W x H (mm) |
700x385x760 |
700x440x780 |
| Net weight (Kg) |
125 |
157 |
-
