Description

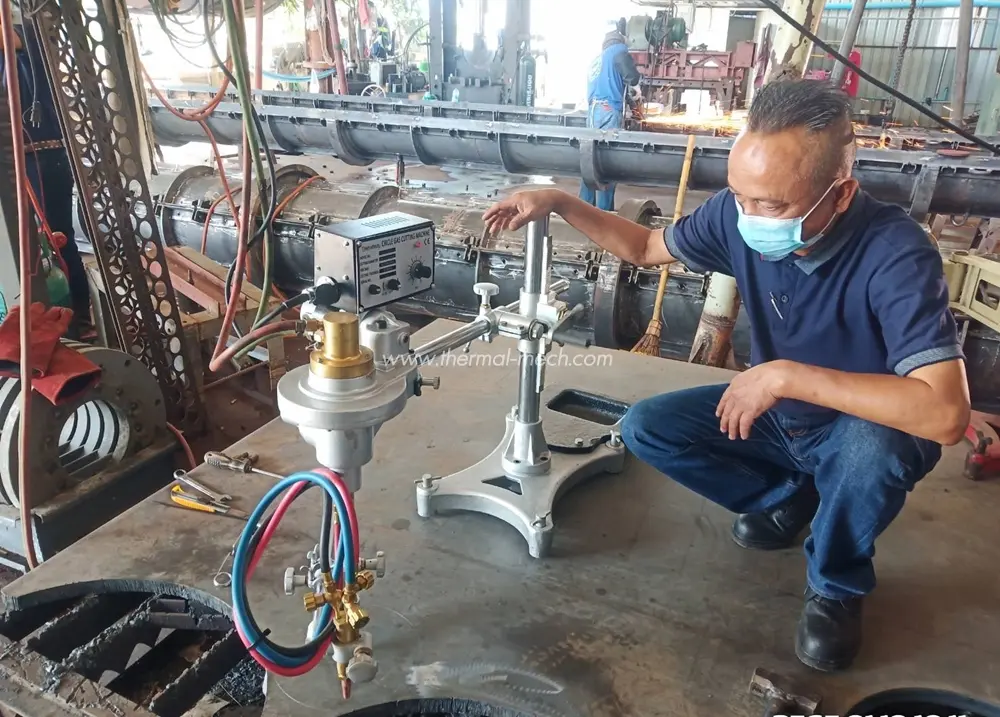

Circle Gas Cutter THERMATECH MODEL TM-1000
Circle Gas Cutter TM-1000 | Precision Plate Cutting | Thermatech

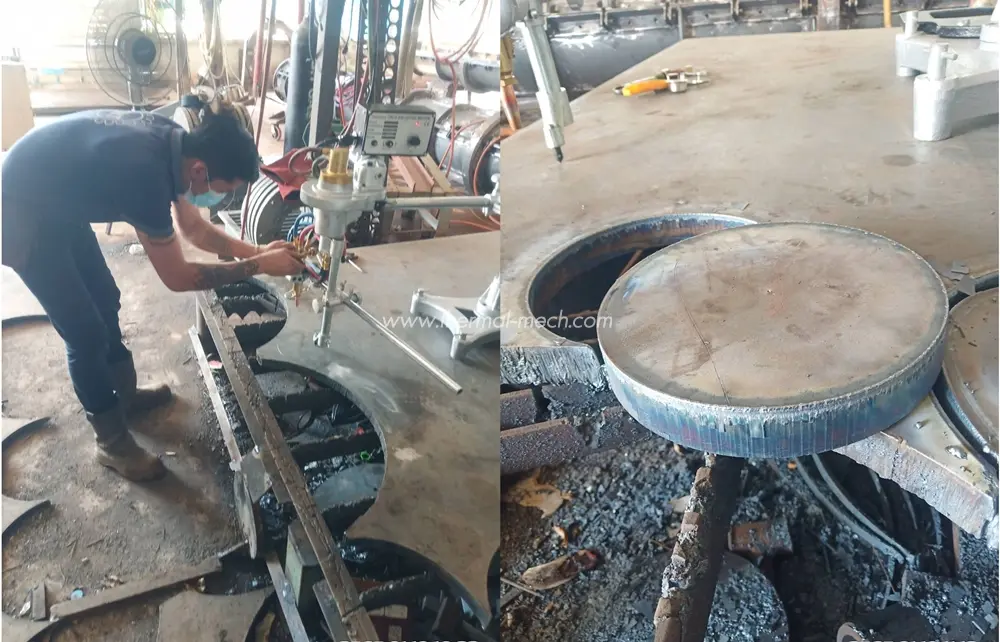

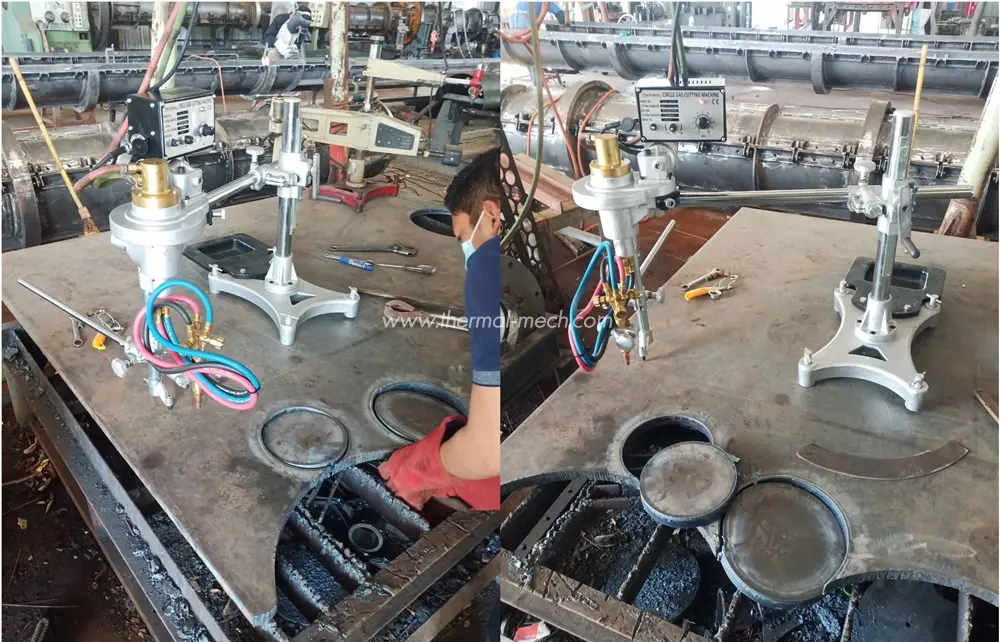

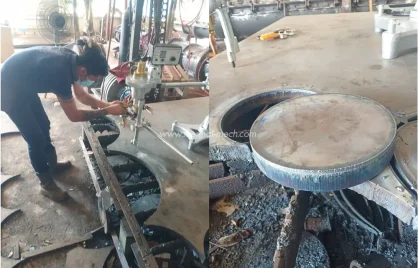

A Circle Gas Cutter like the TM-1000 from Thermatech provides the ultimate portable solution for fabricators needing to cut precise circular plates, tank heads, and industrial pipe flanges. Operating via a heavy-duty centering pin and an automated motorized drive, this specialized gas cutting machine allows operators to walk the torch smoothly through a complete rotation without stalling or vibration. This eliminates the jagged entry and exit marks common with manual cutting, resulting in pristine, square-edged bevels that require zero secondary grinding or finishing work.
Technical Highlights and Features of the TM-1000 Circle Gas Cutter
Designed to handle demanding cutting applications in shipyards, pressure vessel manufacturing, and structural steel workshops, this machine offers excellent functionality:
- Wide Cutting Radius with Easy Adjustments: The cutting torch arm can be adjusted freely along the radius bar, allowing the machine to cut small holes up to large-diameter circular blanks with high precision.
- Premium Oxy-Fuel Torch Configuration: Equipped with a professional gas manifold system that maintains a highly stable preheat flame, ensuring efficient piercing and smooth tracking through thick steel sheets.
- Solid Centering Clamping System: Features a robust central anchoring system that locks firmly onto the surface of the steel plate, preventing any shifting or slippage while the motorized arm rotates.
- Ergonomic and Safe Control Layout: Speed direction dials, clutch levers, and gas valves are positioned intuitively on the main unit, allowing operators to work safely and make adjustments on the fly.
Specification
| Model | TM-1000 |
|---|---|
| Cutting Diameter | 30-1000 mm. |
| Cutting Thickness | 6-50 mm. |
| Torch Rotation | 0.04 -1.5 rpm |
| Bevel Shape | l or V(0-45) |
| Power | AC 110/220 V, 50-60 Hz. |
| Weight | 50 Kg. W/ Special Support |
| Dimension (mm) | 1,200 x 340 x 700 mm. |
After-Sales Service
- Online Service for initial troubleshooting and technical support
- On-site service provided by professional engineers from Thermal Mechanics, ensuring reliable after-sales support and long-term performance
📩FB Inbox: m.me/thermalmech
✅LINE OA: @thermalmechanics
📧Email: sales@thermal-mech.com
☎️Tel: 02-759-4795
FAQ: Frequently Asked Questions
Q: What is the maximum plate thickness this Circle Gas Cutter can process?
A: While the machine’s rotation is driven by an electric motor, the cutting thickness limit depends on your choice of cutting tip and gas pressure setup. Generally, the TM-1000 smoothly handles standard mild steel plates ranging from 5 mm to well over 50 mm thick, delivering straight, square, and high-quality edge finishes.
Q: Does this cutting machine require specialized operator training?
A: Not at all. The Circle Gas Cutter lineup from Thermatech is designed for straightforward, out-of-the-box operation. Any standard welder or steel fabricator can learn how to set the center point, adjust the rotary speed, and begin cutting high-quality parts within minutes. We also provide full technical guidelines and replacement parts support.
