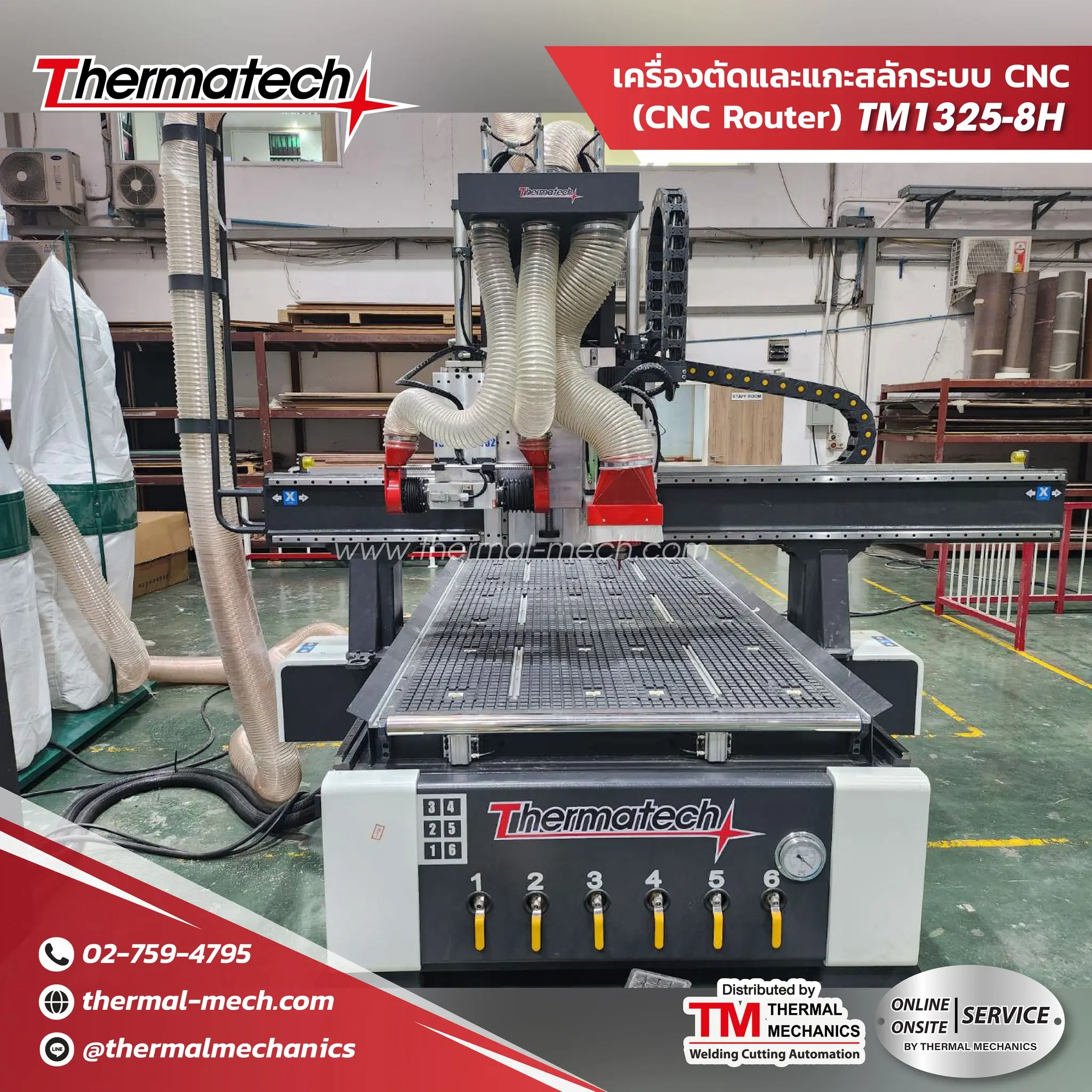

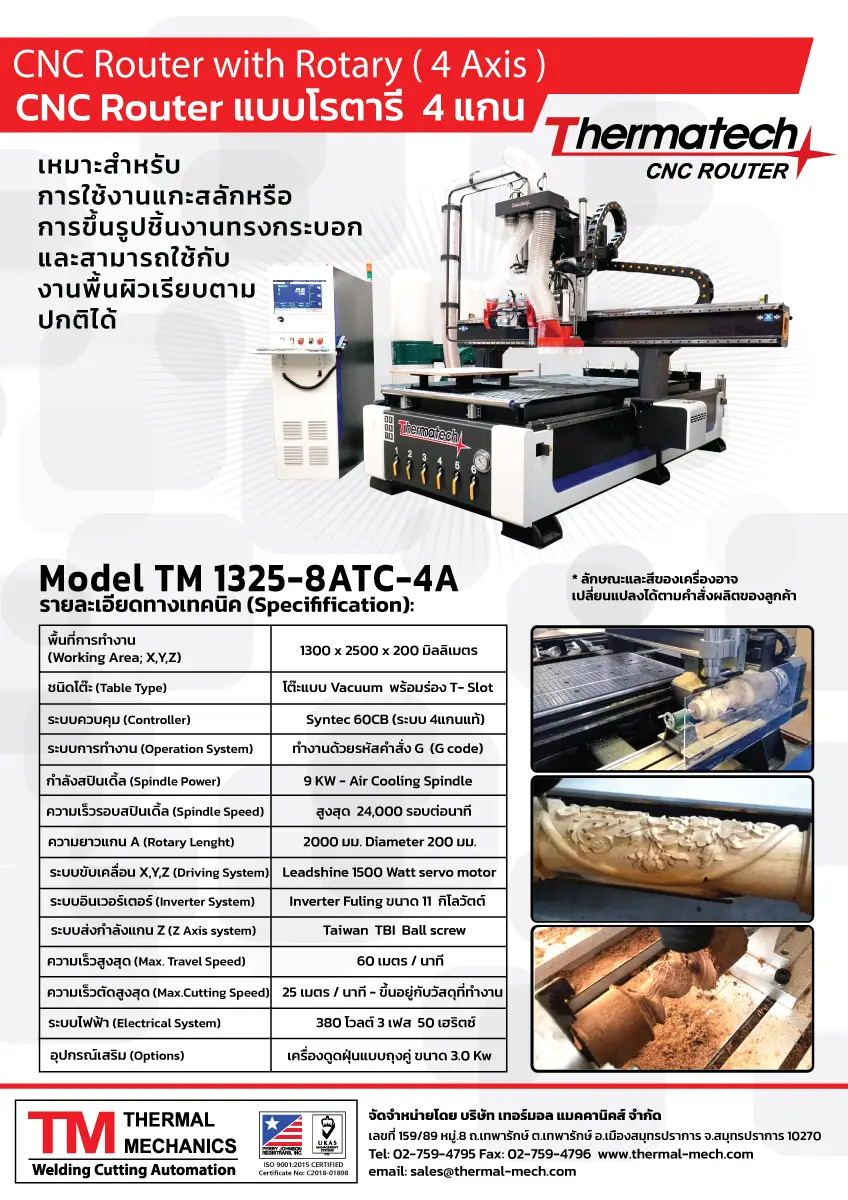

Fully 4 Axis CNC Router Thermatech Model TM-1325- 8ATC – 4A

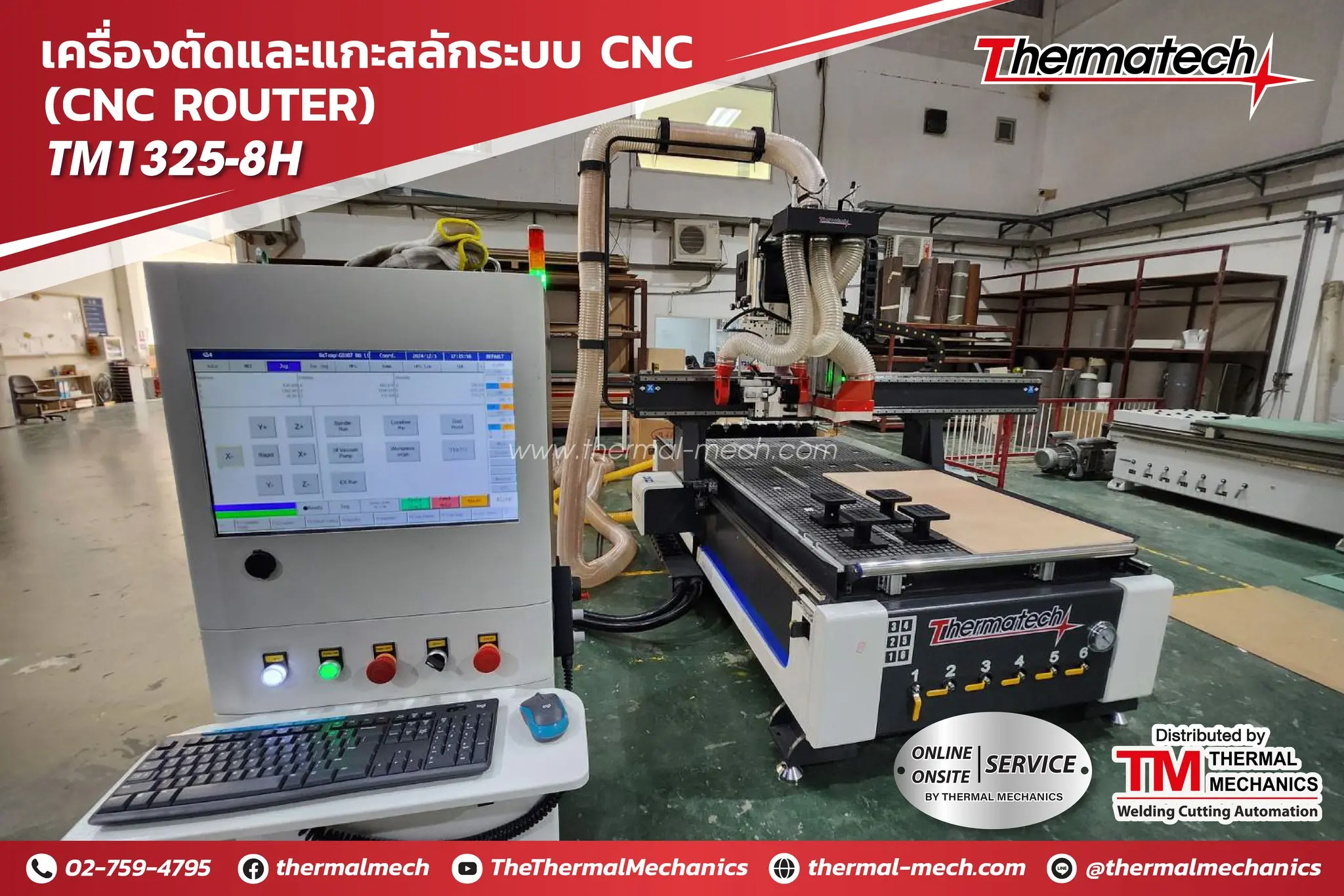

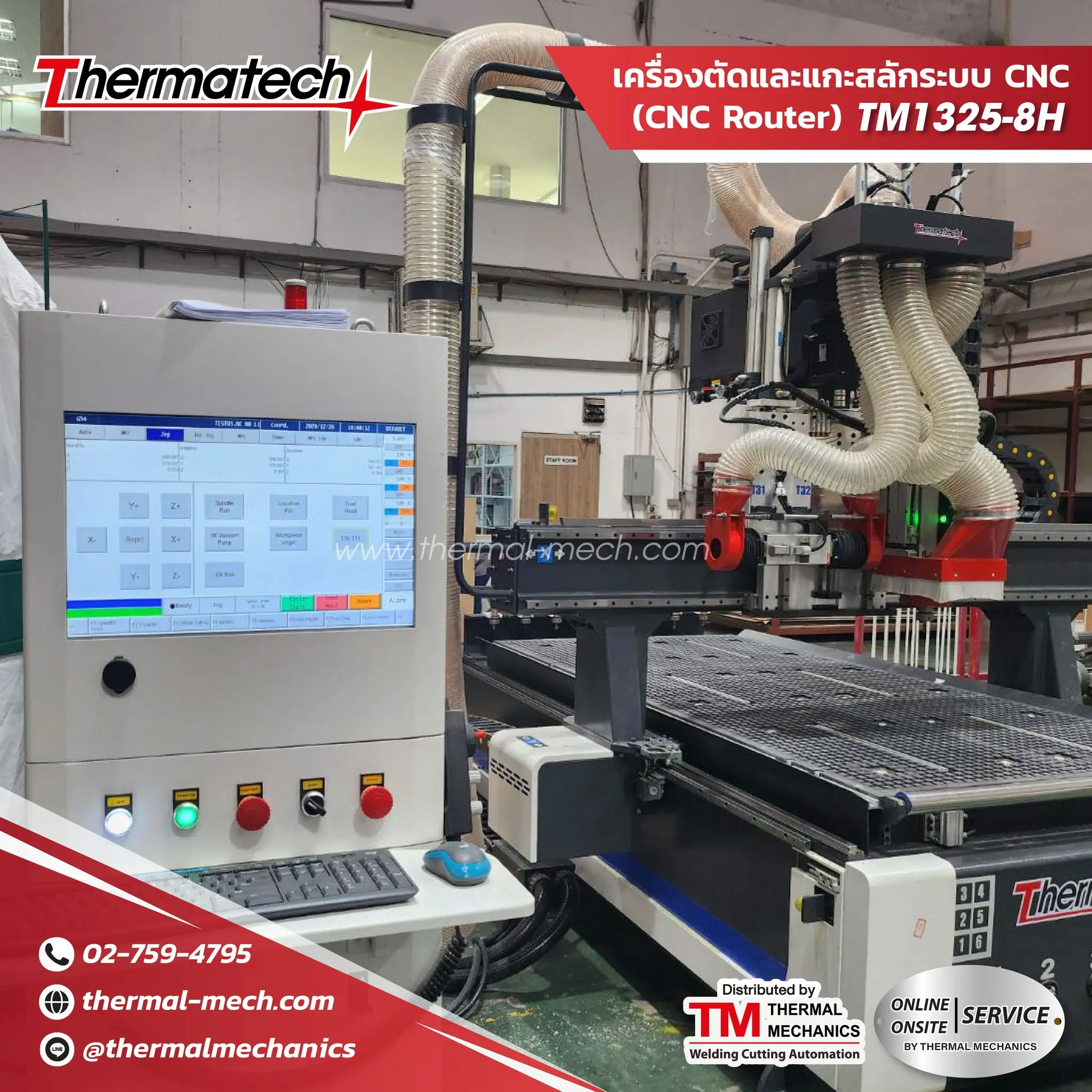

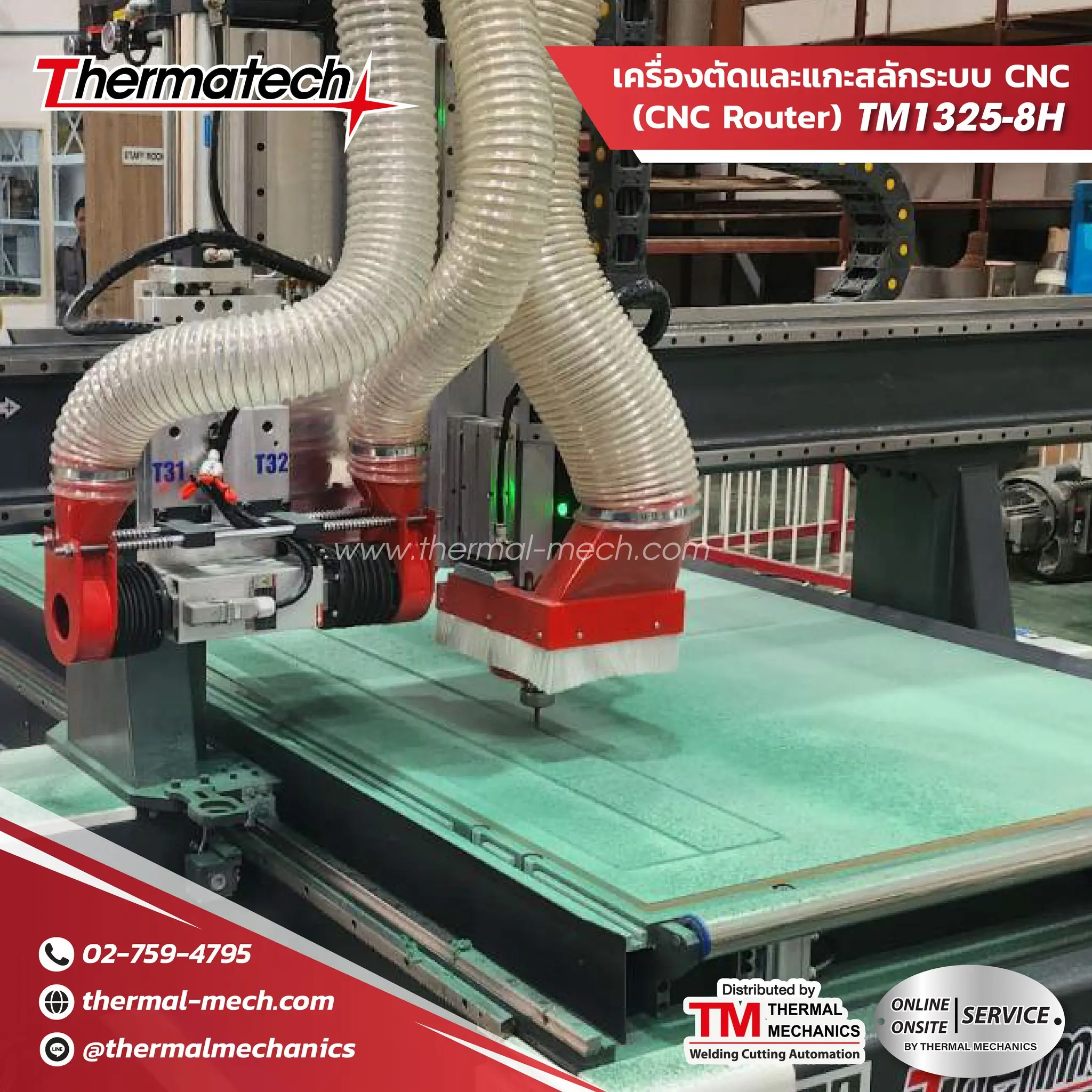

• Drive & Control System: Driven by a high-precision Fully Servo Motor System and managed by an industrial-grade Syntec Controller. This advanced 4 Axis CNC Router is fully integrated with an Auto Tool Change (ATC) system to streamline multi-tool operations and minimize cycle times.

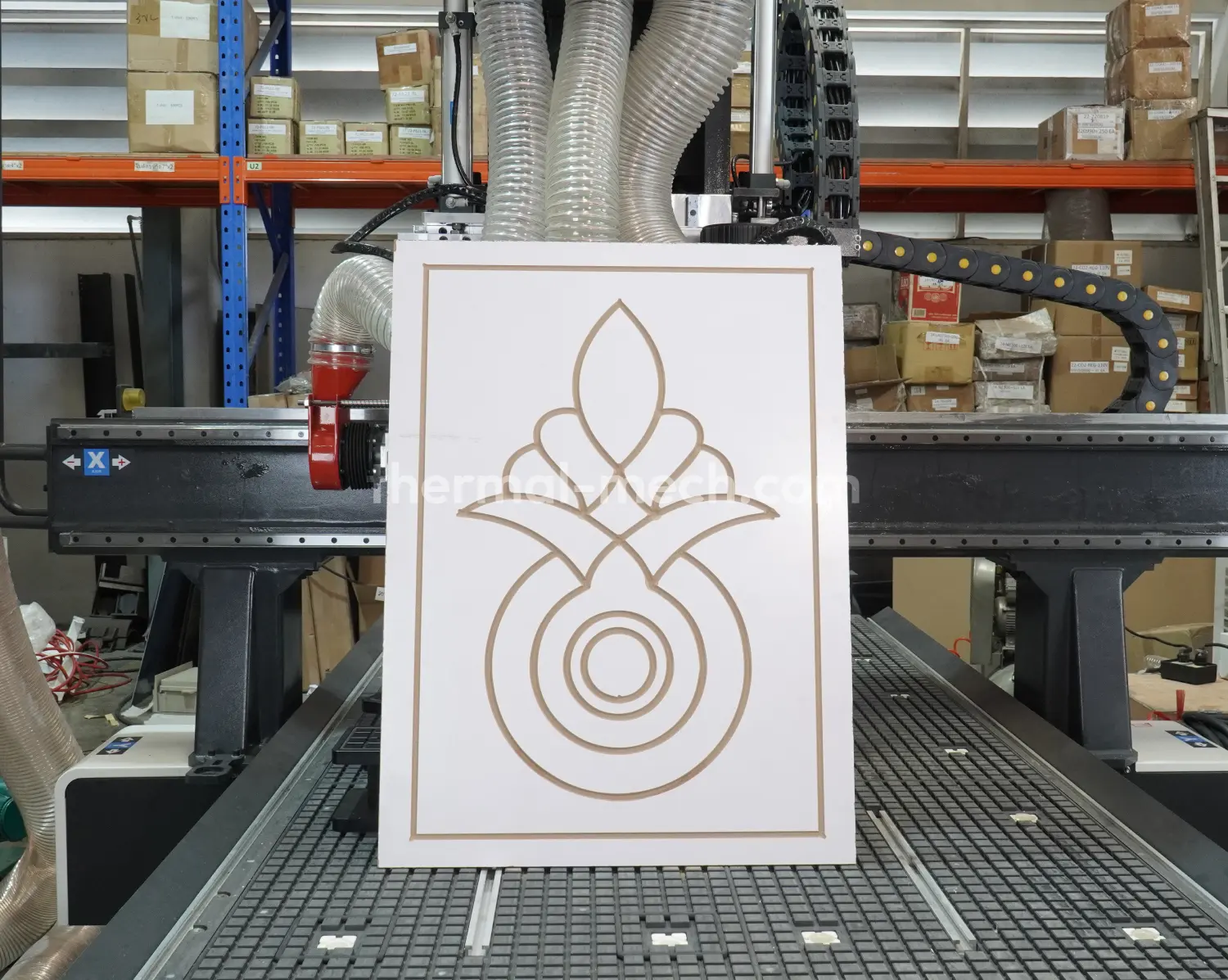

• Primary Applications: Specifically engineered for heavy-duty cutting, intricate 3D engraving, custom furniture manufacturing, elaborate spindle work (such as table and chair legs), wooden door/window fabrication, and high-end signage production.
• Material Compatibility: Highly compatible with a wide range of substrates including hardwood, engineered wood, plastics, PVC foam boards (Plastwood), thick acrylic sheets, and aluminum composite panels.
• Work Envelope Options: Multiple working table configurations are available for this 4 Axis CNC Router to meet specific production scales, including 1300 x 2500 mm, 1300 x 4000 mm, and 1500 x 3000 mm.
• Rotary Axis (A-Axis): As a versatile 4 Axis CNC Router, the system is equipped with a 4th Axis Rotary Attachment capable of clamping cylindrical workpieces with a maximum diameter of up to 200 mm. The rotary length can be customized to match the selected machine bed size.

Workholding & Auxiliary Systems

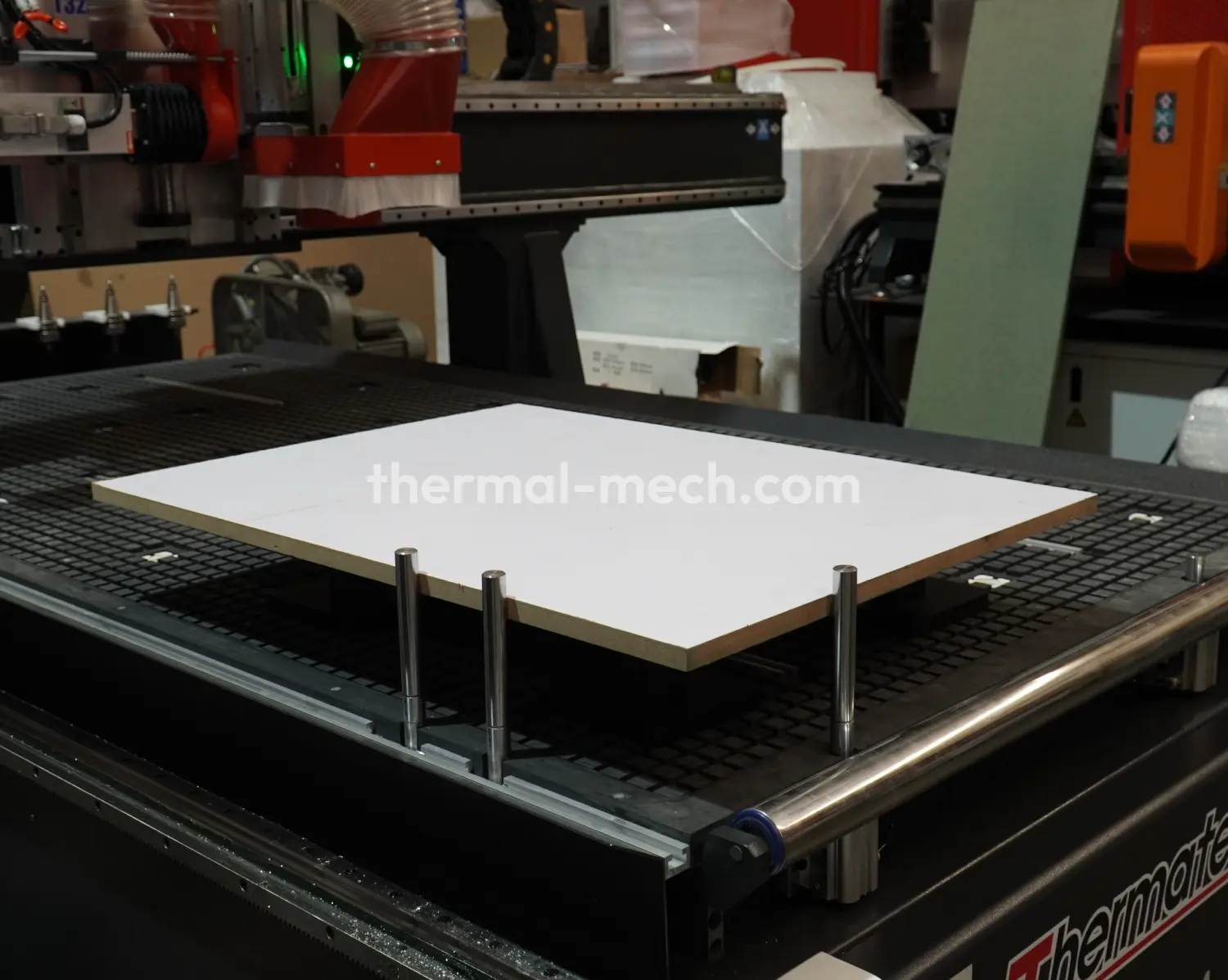

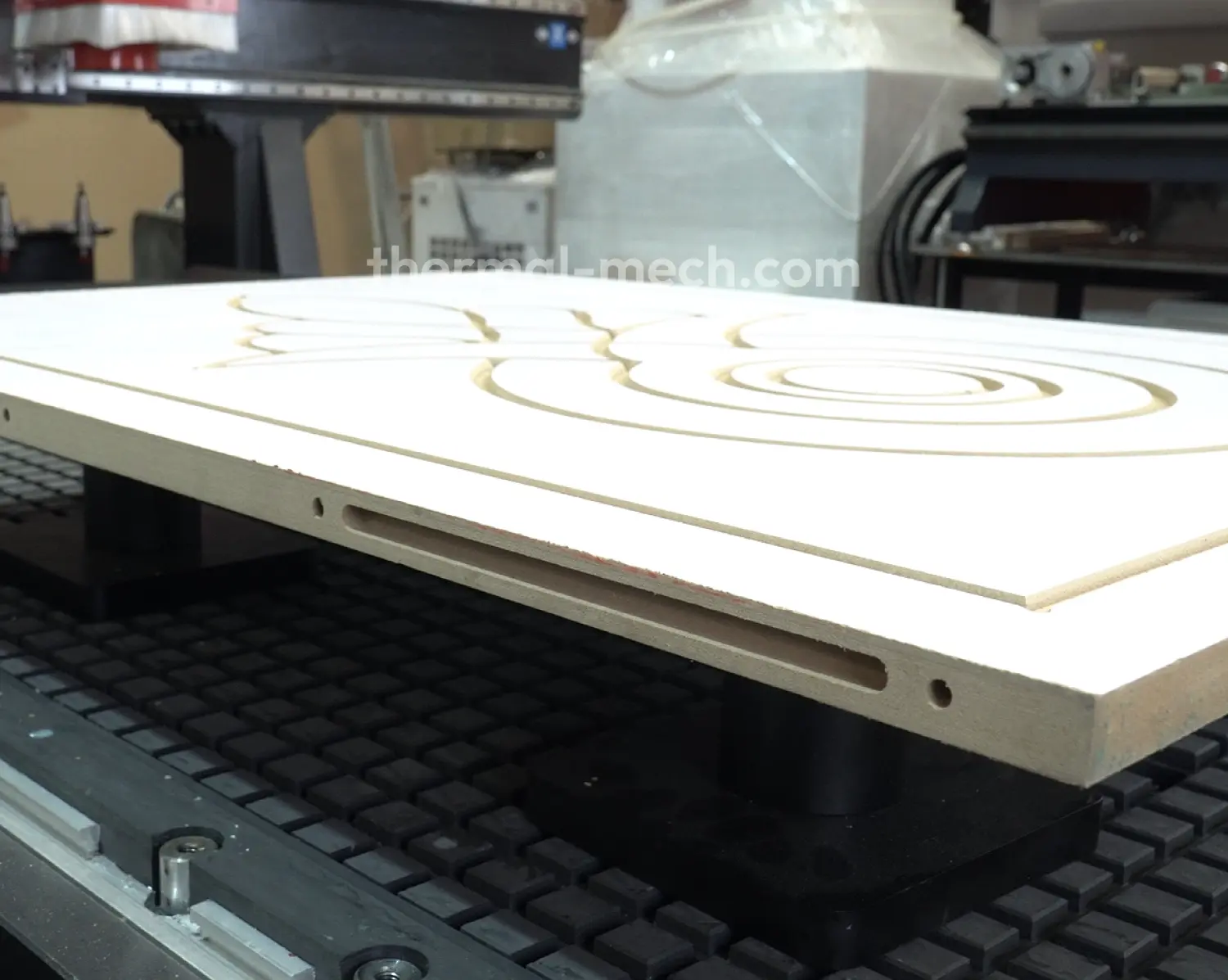

• Vacuum Workholding Bed: Designed with a high-efficiency Vacuum Suction Matrix Table that eliminates the need for manual mechanical clamps. Operators can simply place the sheet material directly onto the bed for immediate processing, significantly reducing setup times.
• V-Grooving Precision: The robust vacuum hold-down pressure of this 4 Axis CNC Router is exceptionally beneficial for V-grooving operations on aluminum composite panels, ensuring a perfectly consistent depth-of-cut across the entire workpiece surface.
• Auxiliary Equipment: The system includes a powerful 5.5 kW Vacuum Pump and a Twin-Bag Dust Collector with a 200-liter capacity to maintain a clean and safe working environment.
• Software: Bundled with a fully licensed G-Code Generation Software (CAM Software) that supports multi-axis machining operations along with complete technical documentation.
