Orbital Welding machine model TM-200

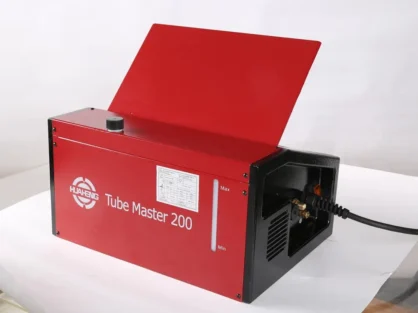

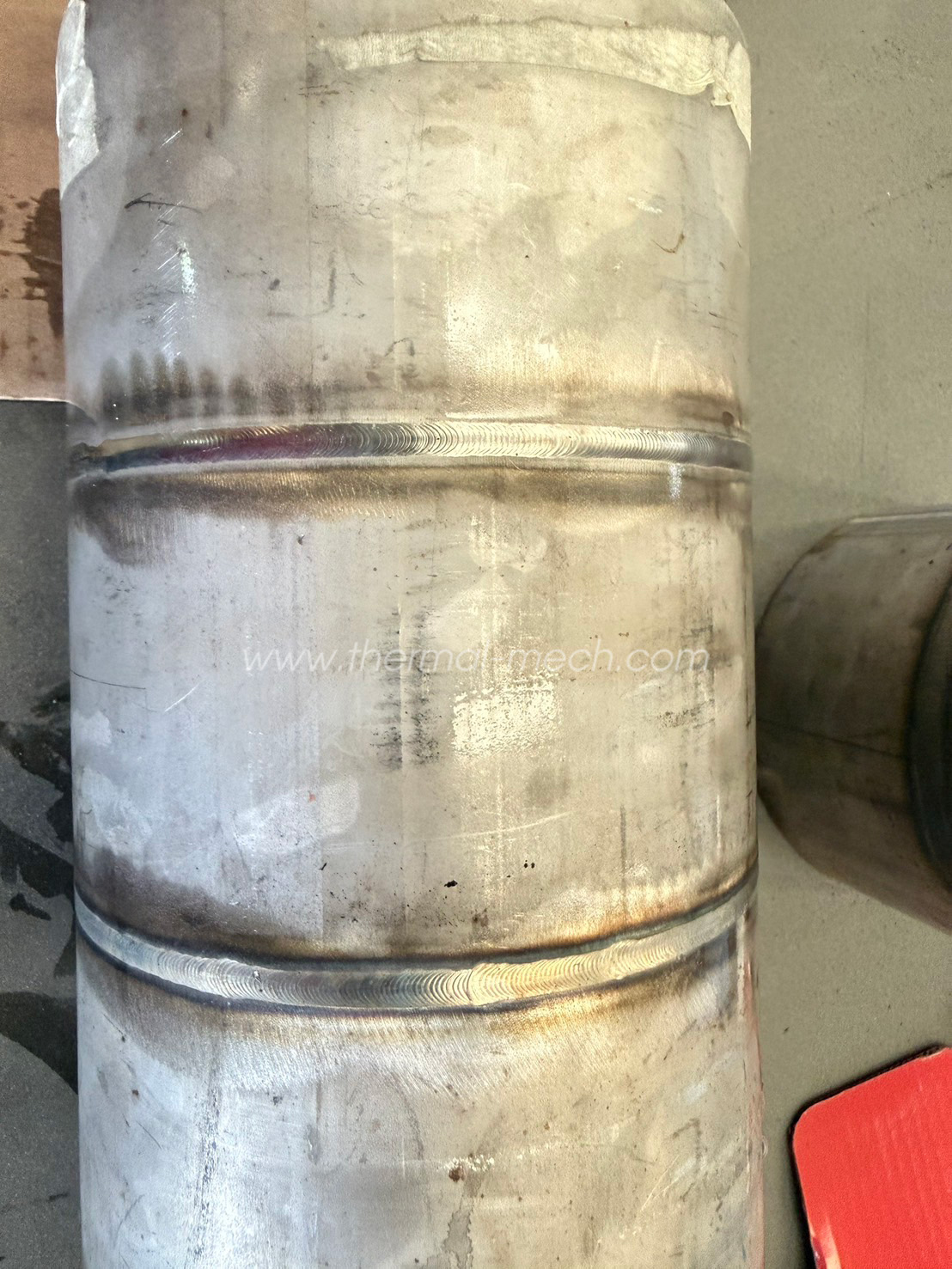

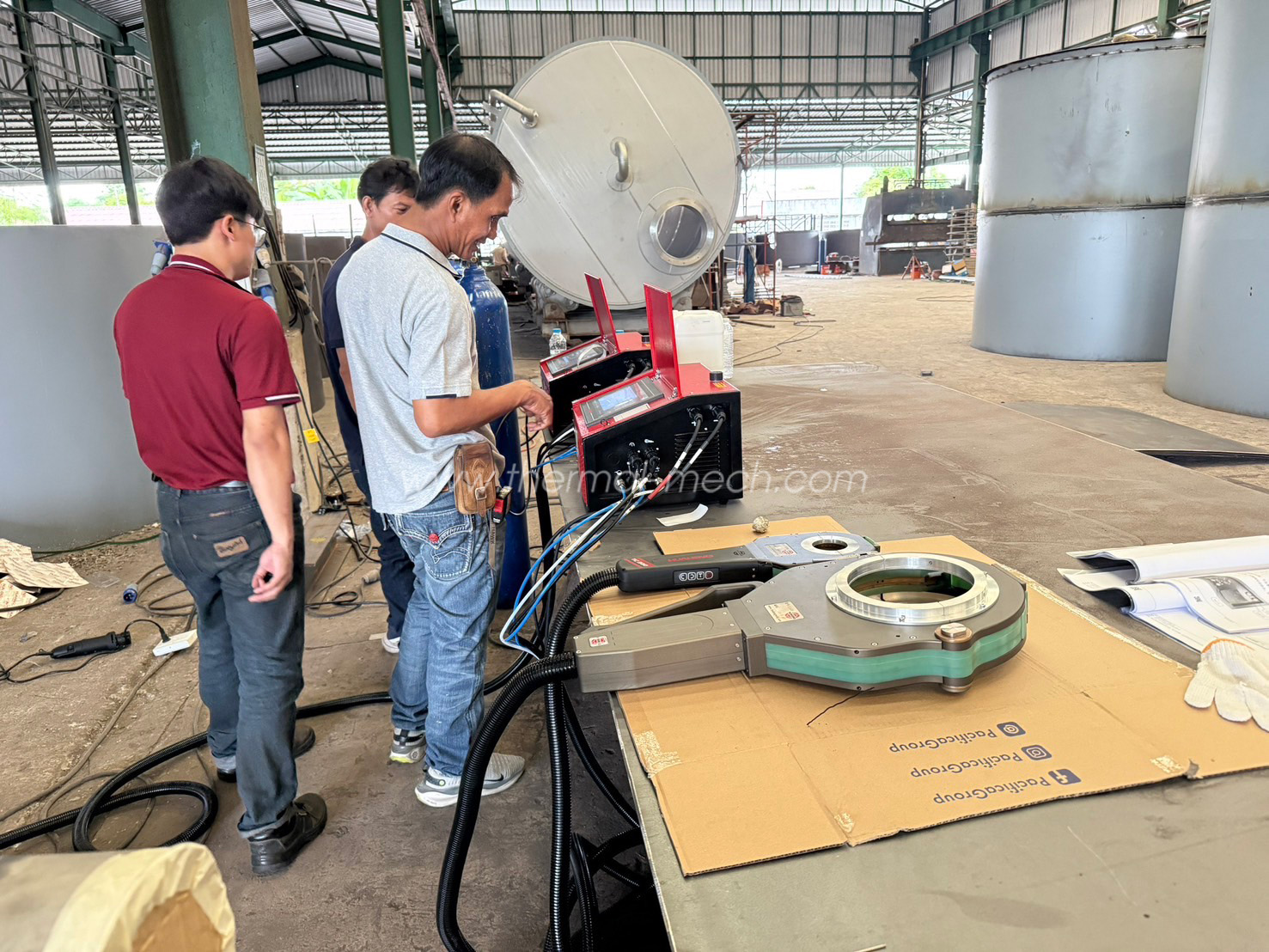

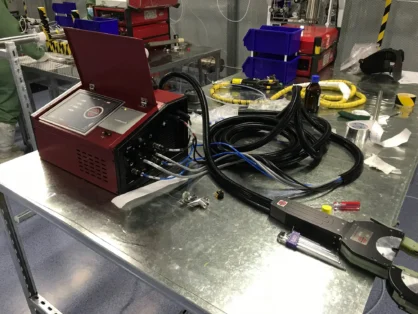

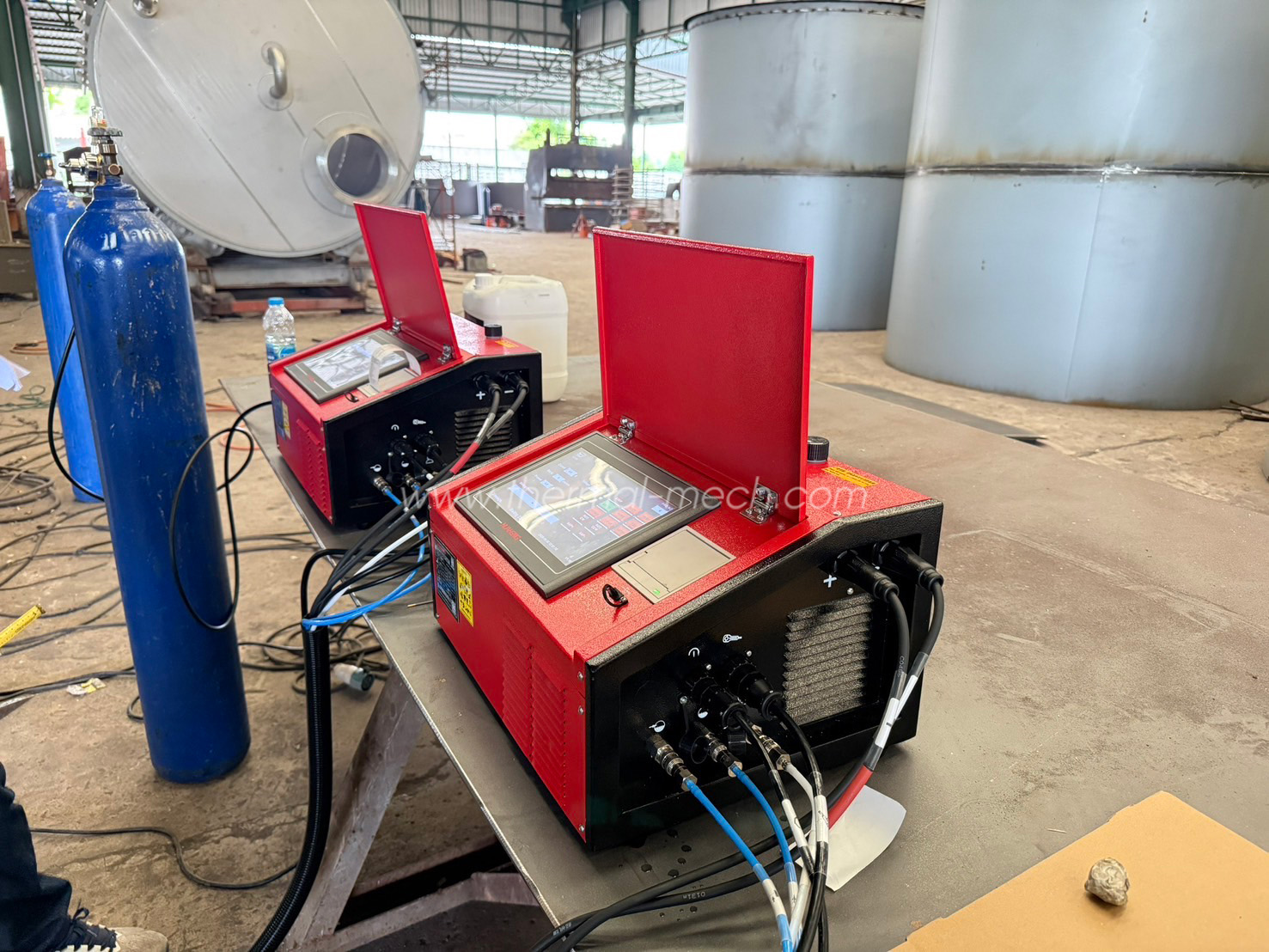

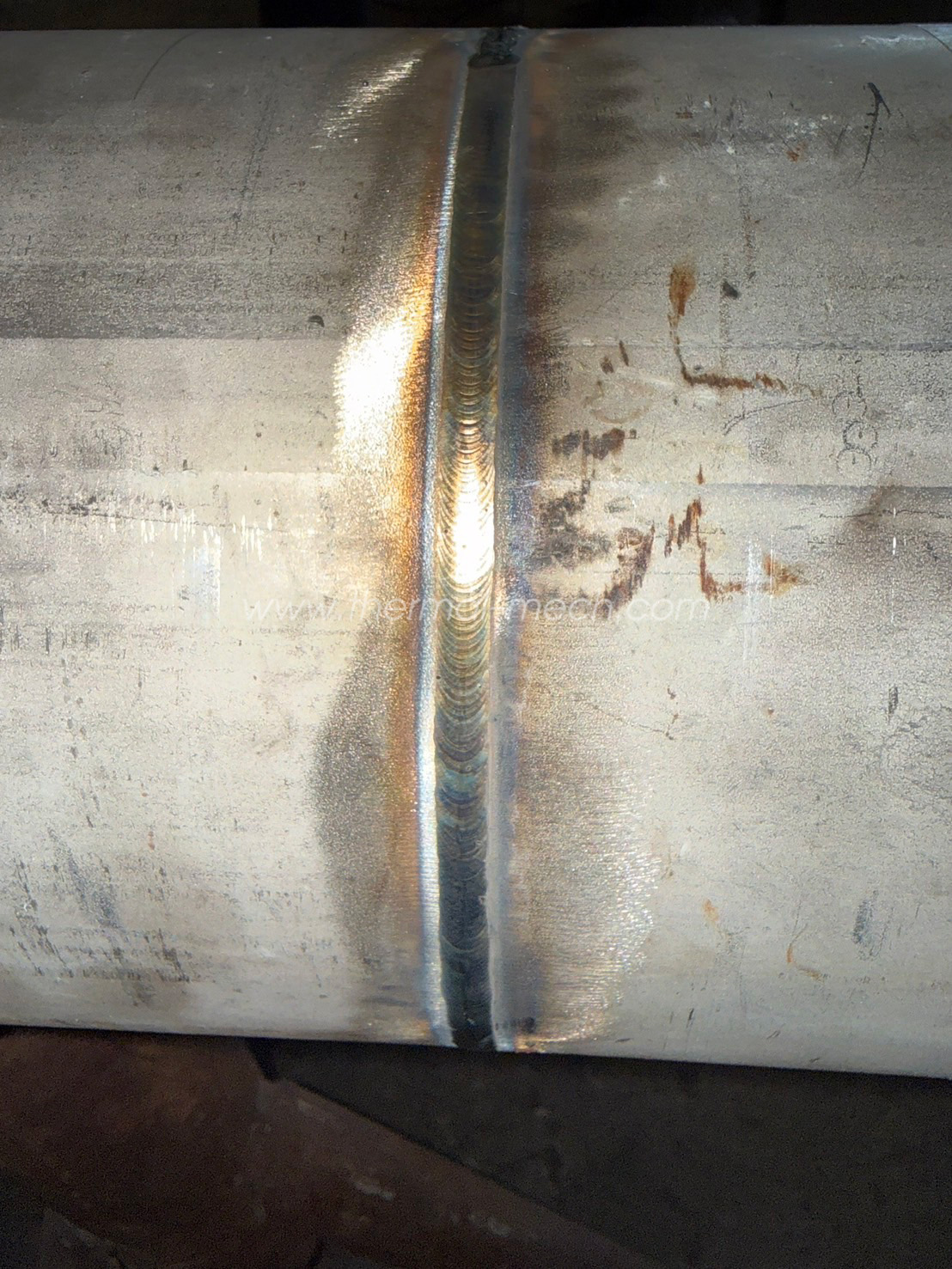

Tube master 200 welding power source is designed and manufactured according to advanced technology by Huaheng Welding. The power source adopts industry-leading inverter control technology ond equipped with extra–large color touch screen as User’s interface. This power source is developed and manufactured with our 20 years ‘ experience having the advantages as advanced, digital, easy-to-operate, intelligent, flexible and stable. The PLC controlling system combines with touch HMI achieve centralized setting and storage of the parameter and DSP synchronized controlling. Besides, it offers accurate current output, rotation and shielding gas control. Tube Master 200 is specially designed for thin wall thickness tube to tube welding, ond widely used in chemical ind ustry, food industiry, phcrmaceuticcl industry, electroniccl tubing, hect exchanger ond etc. It’s compctible with all Huaheng TC series welding head.
Features
- Six operation interfaces: Working status, programming, settings, files, library ond help
- Welding parameter automatic calculating. convenient thin wall thickness tube to tube welding parameter match.
- Expert database, automoticolly generate welding parameters for different tube OD and thickness.
- Perfect trouble shooting ond error code display, reasonable modular design, easy for maintenance.
- Import/export welding programs by USB driver, easy to switich between different programs.
- Memory function for parameter adjusting, can achieve online real-time memorizing parameter adjustment, convenient for
- comparison between parometers before and offer adjustment.
- Welding current and rofction speed can be adjusted while welding to achieve special requirement of some welding seam.
- Online ond USB driver upgrade function and offline programming function.
Technical Specs
Type | Inverter |

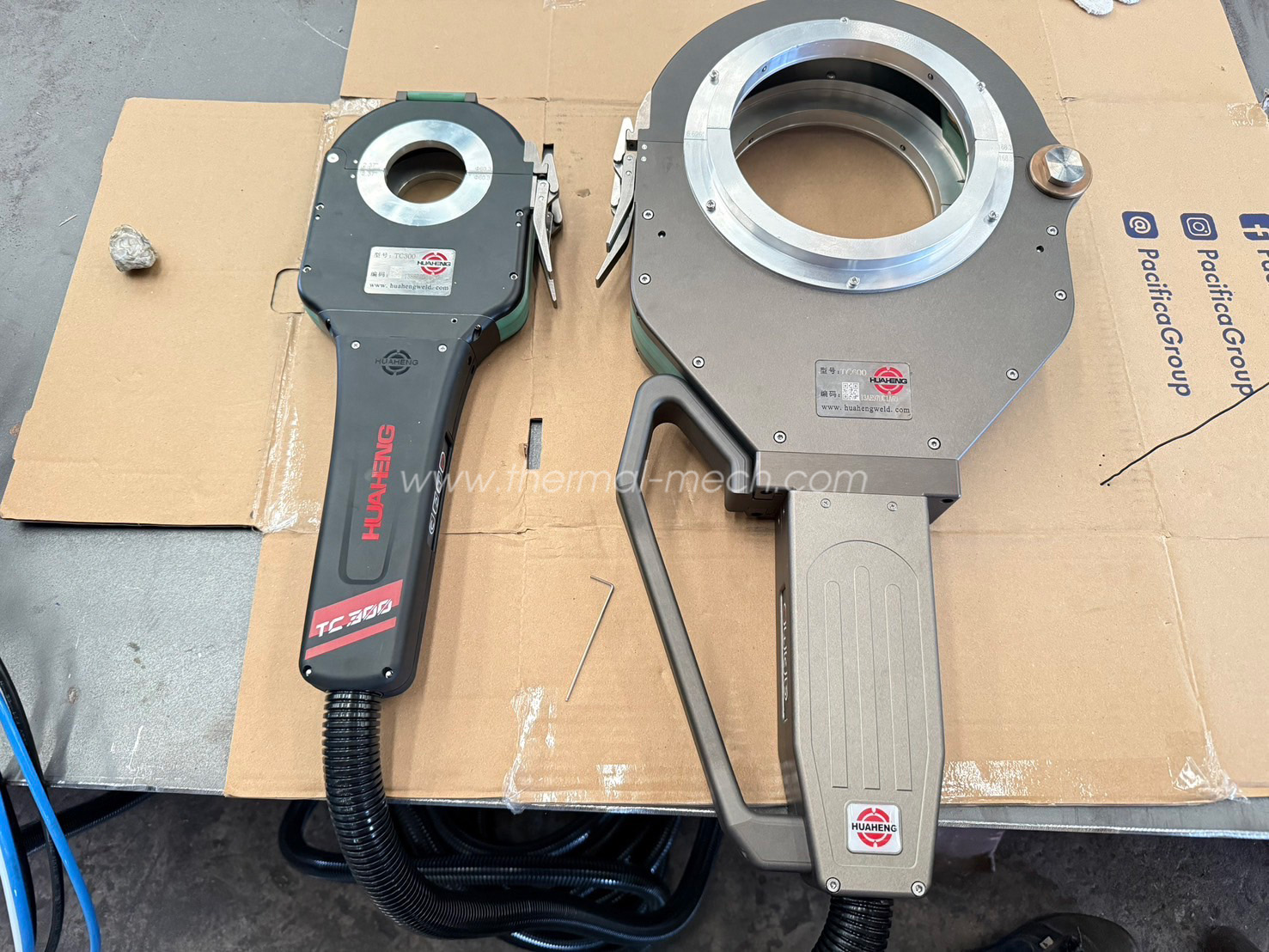

Compatible weld head | TC |
Welding current | 5-200A |
Duty cycle | 200A 60%/155A 100% |
Floating voltage | 42V |
Main power supply | 220±10% 50/60Hz |
Max power | 6KVA |
Insulation/Protection | F/IP215 |
Working ambient temperature | -10 C – +40 C |
Storage temperature | -25 C – +55 C |
Cooling type | Air/Air or water |

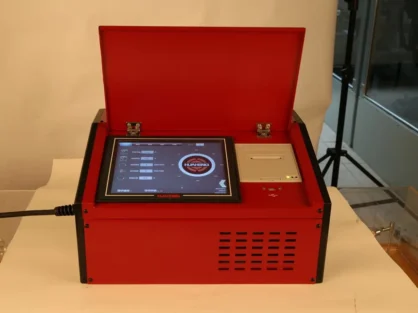

Screen | 10.4″color touch screen |
Control function | Gas/Current/Rotation |
Max program numbers | 999 |
Max sections | 20 |
Printer | Integrated printer |
Cooling tank capacity | 1.6L |
Dimension/L x W x H | 458mm X 350mm X 247mm |
Weight (without coolant) | 17.8 kg |
Manufacturing standard | GB15579.1 – 2013, IE60974/IEC |
