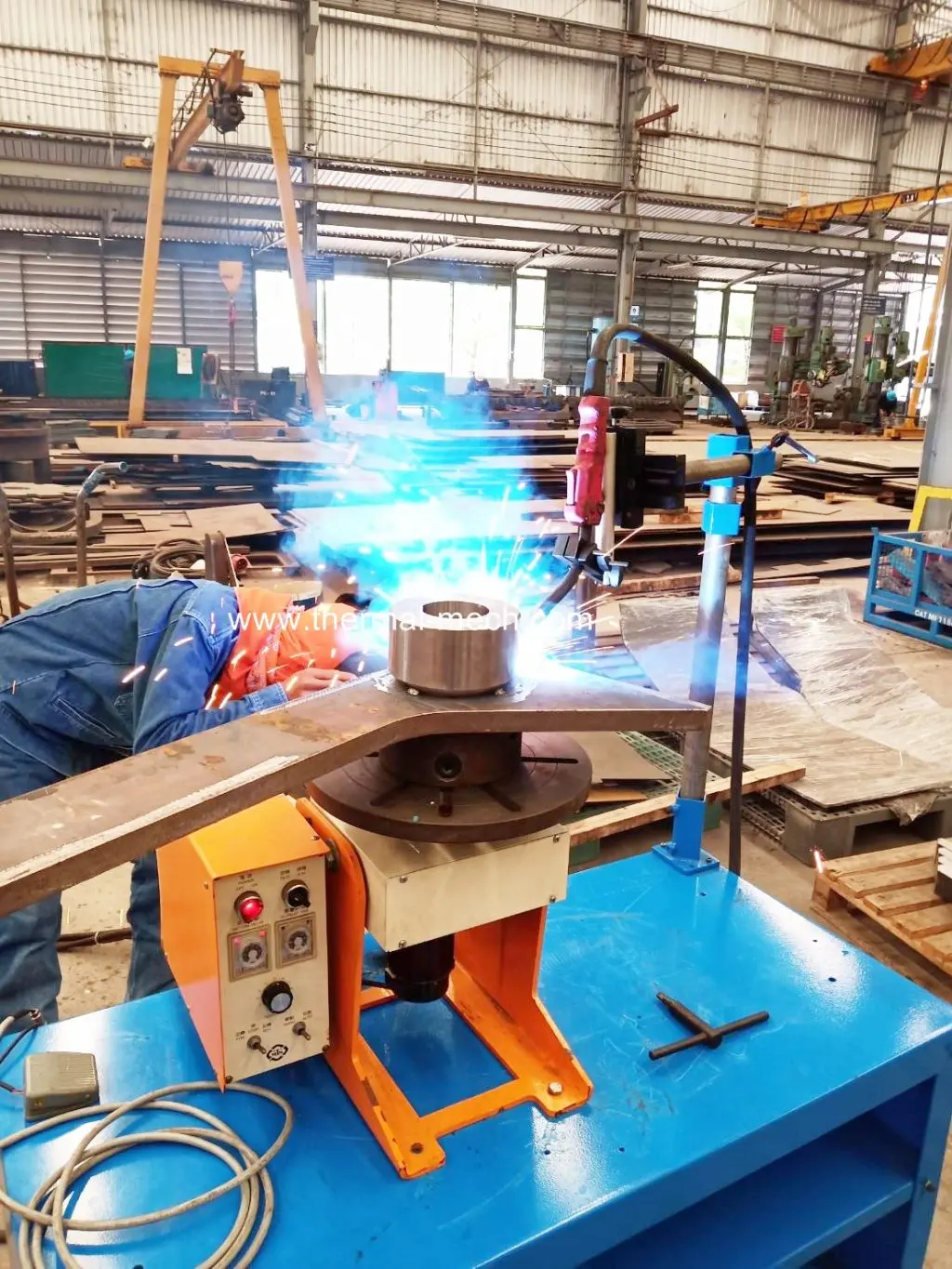

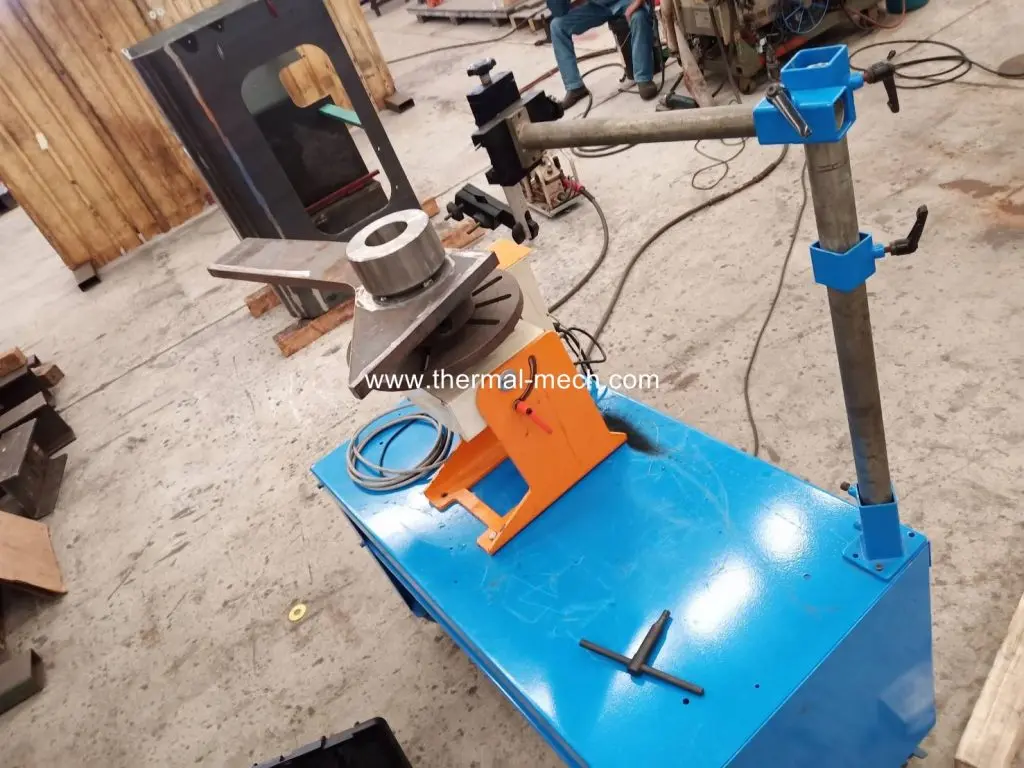

WELDING POSITIONER 1 TON MODEL TMS-1030D
Welding Positioner 1 Ton Model TMS 1030D
Property Summary
- Through the design of the center bore on the shaft of the welding positioners in this series, the installation of the air hose or pneumatic material discharging device is optional. This has the merits of high rigid and fast heat dissipation.
- To fix the angle of the welding positioners by adjustable hand lever mounted on base wall or by warm shaft adjustment. Adjustable range:0-90
- Welding positioners is standardization and easy assembly constructed, It applies single step speed reduction.
- Revolution is adjustable per requirement.
- Grounding high carbon brush can be installed for welding function.
- Grounding efficiency: 50A-500A.
- Duty cycle: 40
| Model | Horizontal Load | Vertical Load | Speed (rpm) | Disc Size | Center Bore | Angle Adjustment | Control Box | Dimension(CM) | Weight(Kg) |
| TMS-100 | 100kg | 0~65kg | 1~13 | Ø 330mm | 38mm | Wall Lock Style | Timer Device Style | 41x46x47 | 45 |
| TMS-300 | 300kg | 0~135kg | 0.6~6 | Ø 330mm | 38mm | Worm-Gear Adjustment Style | Origin Location Style | 46x56x47 | 63 |
| TMS-500 | 500kg | 0~300kg | 0.2~2 | Ø 500mm | – | Worm-Gear Adjustment Style | Origin Location Style | 80x65x62 | 238 |
| TMS-1000 | 1000kg | 0~650kg | 0.1~1 | Ø 800mm | – | Worm-Gear Adjustment Style | Origin Location Style | 95x80x75 | 450 |
