Robotic Welding System for Large-Scale Components

Automated Precision for Heavy Structural Assemblies: The Robotic Welding System for Large-Scale Components

In heavy equipment manufacturing, structural steel fabrication, trailer body building, and large vessel production, manual welding of long seams and complex multi-pass joints poses significant productivity challenges. Human welders face physical strain, heat exposure, and difficulty maintaining uniform bead quality across long workpieces. Implementing a dedicated Robotic Welding System for Large-Scale Components transforms heavy manufacturing by automating repetitive weld paths with sub-millimeter precision.

The Robotic Welding System for Large-Scale Components integrated by Thermal Mechanics combines high-payload industrial robots with multi-axis workpiece positioners and extended travel gantries. This allows the welding torch to smoothly access difficult angles and maintain ideal torch posture across workpieces measuring several meters in length. Advanced arc tracking and sensor technologies continuously adjust for joint variations, ensuring high structural integrity and deep penetration.

Beyond boosting productivity, adopting a Robotic Welding System for Large-Scale Components drastically reduces spatter, heat distortion, and post-weld grinding time. It enables manufacturing plants to operate continuous shifts safely while solving skilled labor shortages in heavy industrial welding environments.

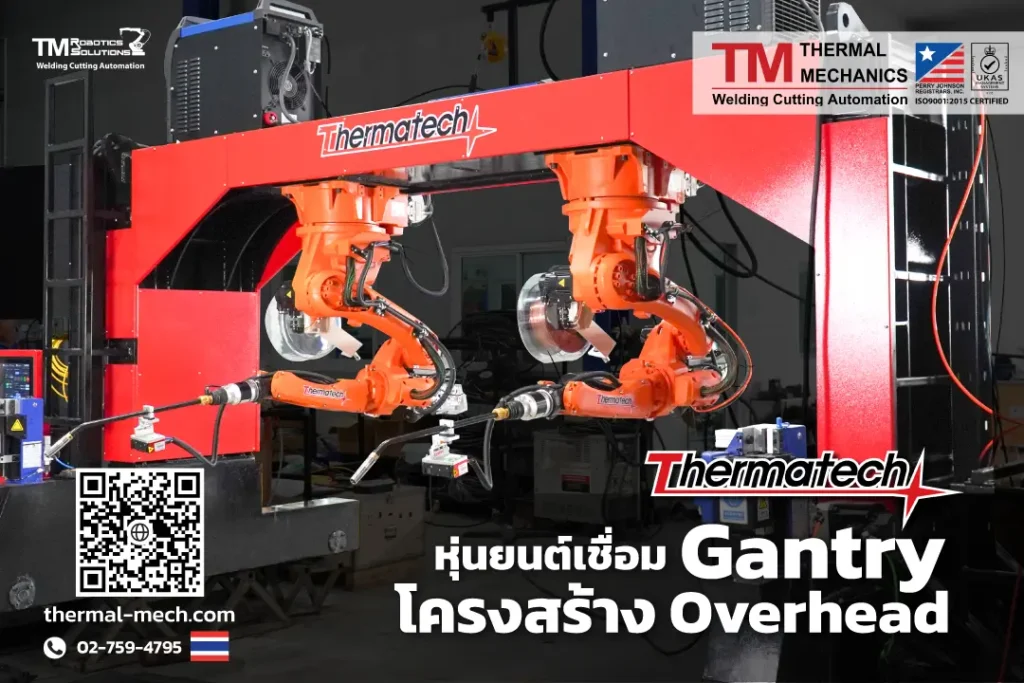

TM Robotics Solutions presents our Gantry-mounted Welding Robot Arm (Overhead Structure), designed for multi-axis mobility and high-precision welding operations.

This system is engineered for large-scale fabrication, including shipbuilding components, structural steelwork, rolling stock (railway components), and heavy machinery parts.

• Multi-Axis Mobility: The gantry configuration enables multi-axis movement along the X, Y, and Z axes, delivering an expansive working envelope.
• Precision and Accuracy: The automated robotic welding cell delivers consistent, high-integrity weld seams by executing programmed path trajectories with tight tolerances.
• Enhanced Productivity: Capable of continuous duty cycles without downtime, significantly increasing throughput and overall equipment effectiveness (OEE).
• Automated Process Control: Seamlessly integrates with vision systems, seam tracking sensors, and adaptive control software for real-time process monitoring and dynamic parameter adjustment.
• Customizable Architecture: Highly scalable frame design tailored to specific application requirements, supporting multi-robot synchronization and auxiliary external axes (positioners/rotators).
