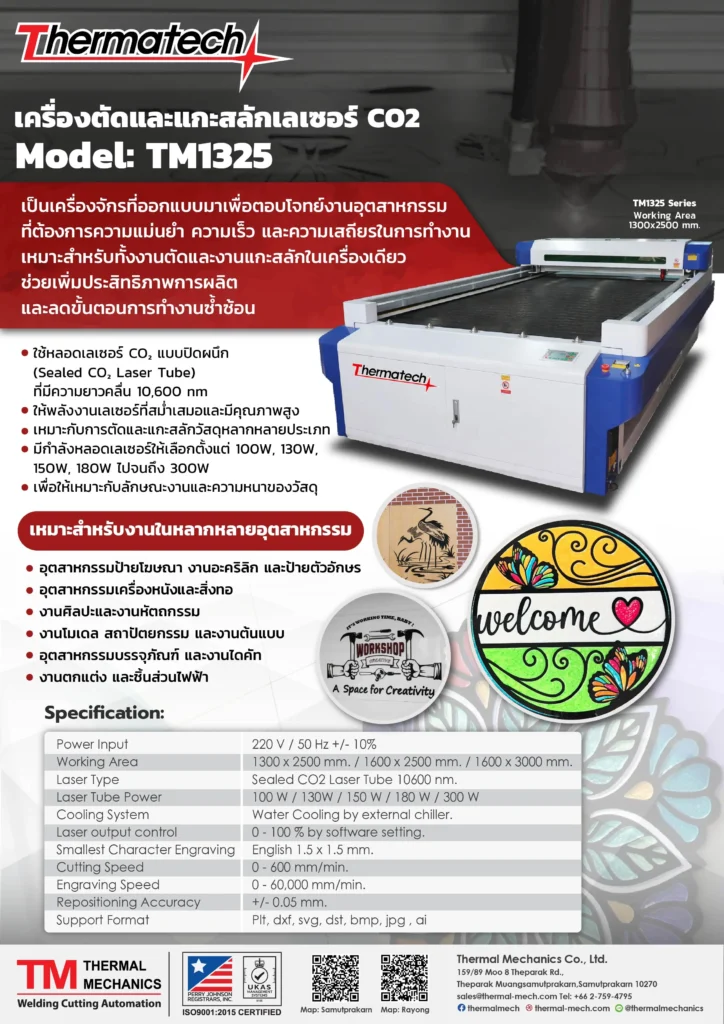

Thermatech CO₂ Laser Cutting and Engraving Machine – Model TM1325

Thermatech CO₂ Laser Cutting and Engraving Machine – Model TM1325

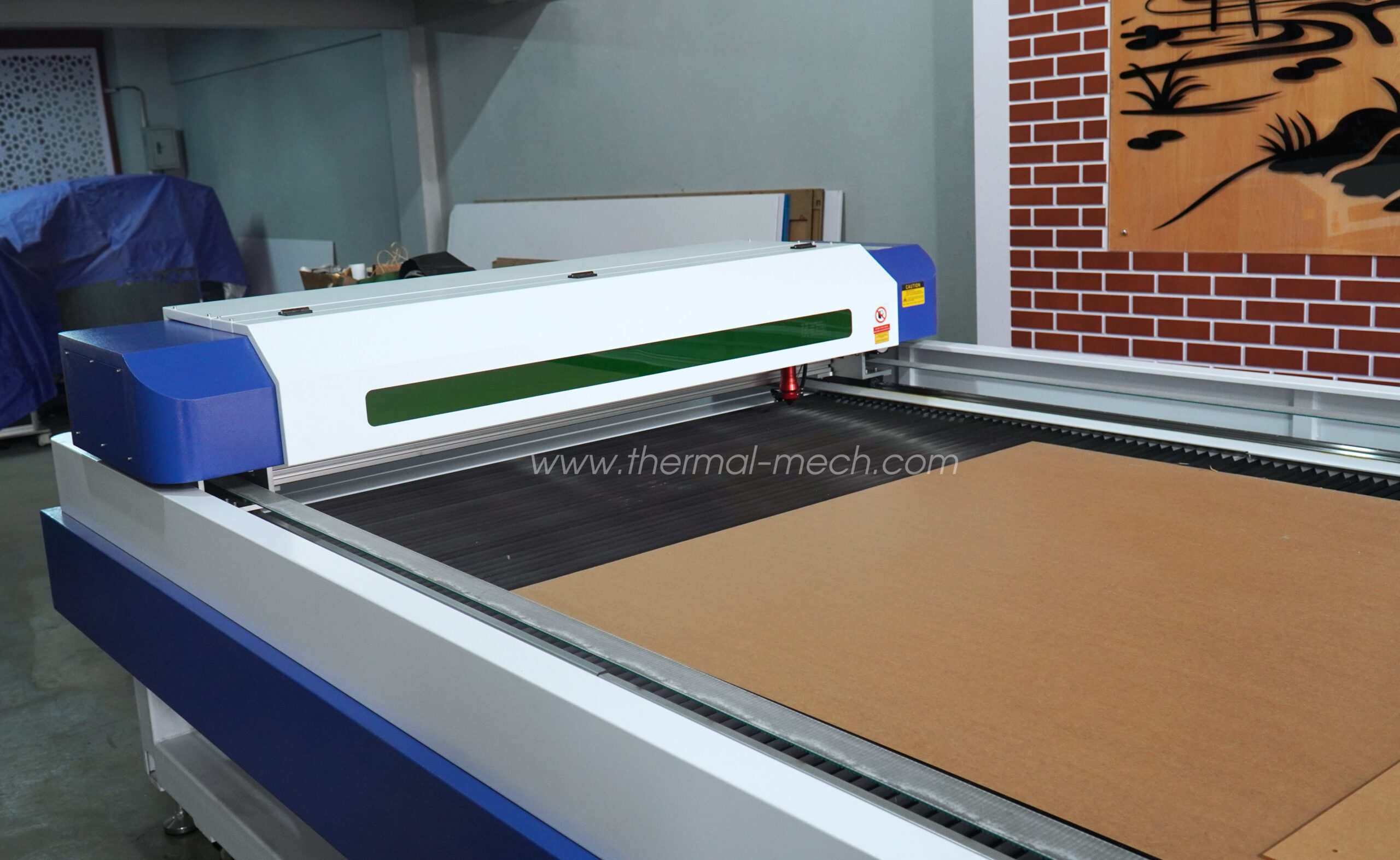

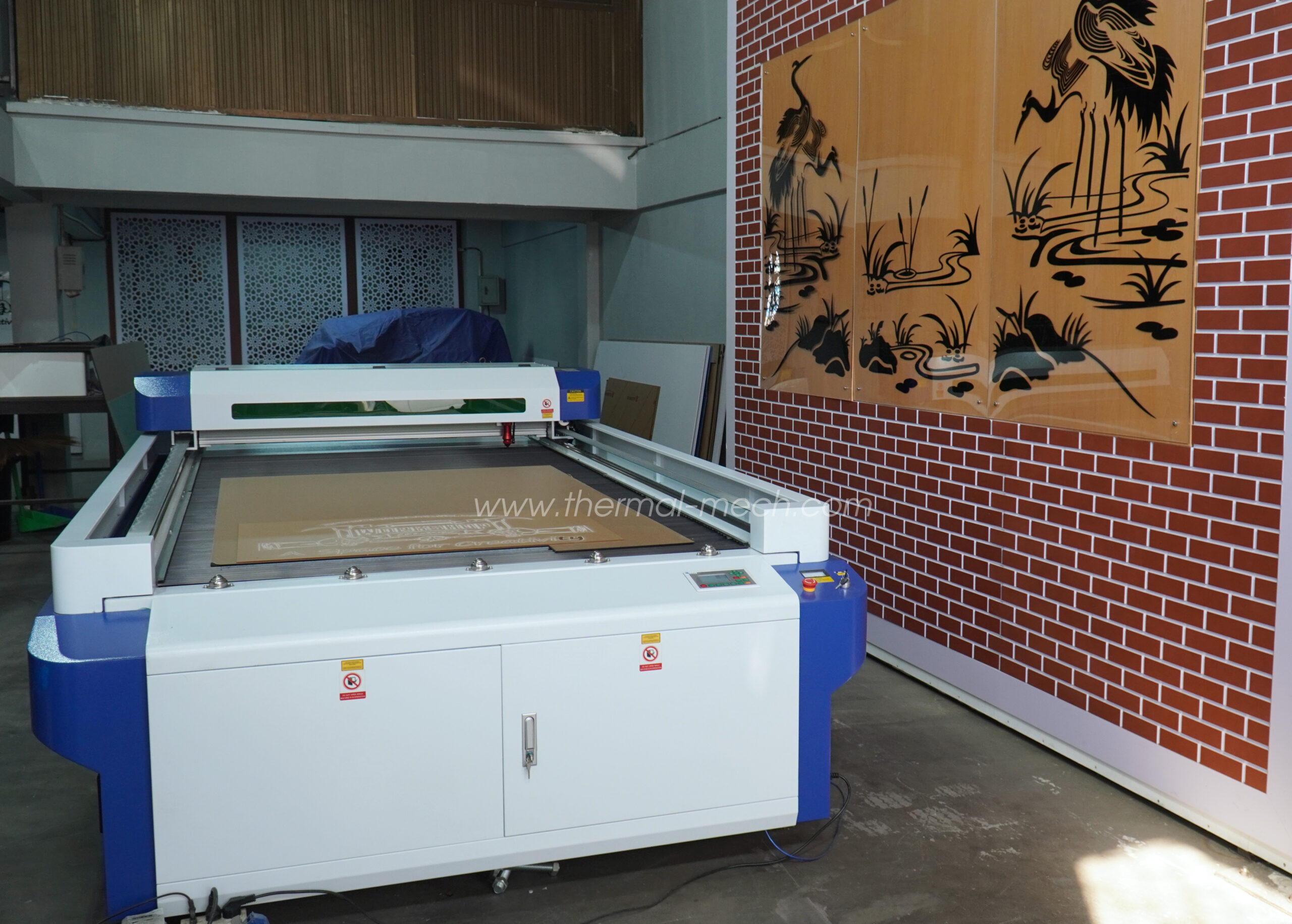

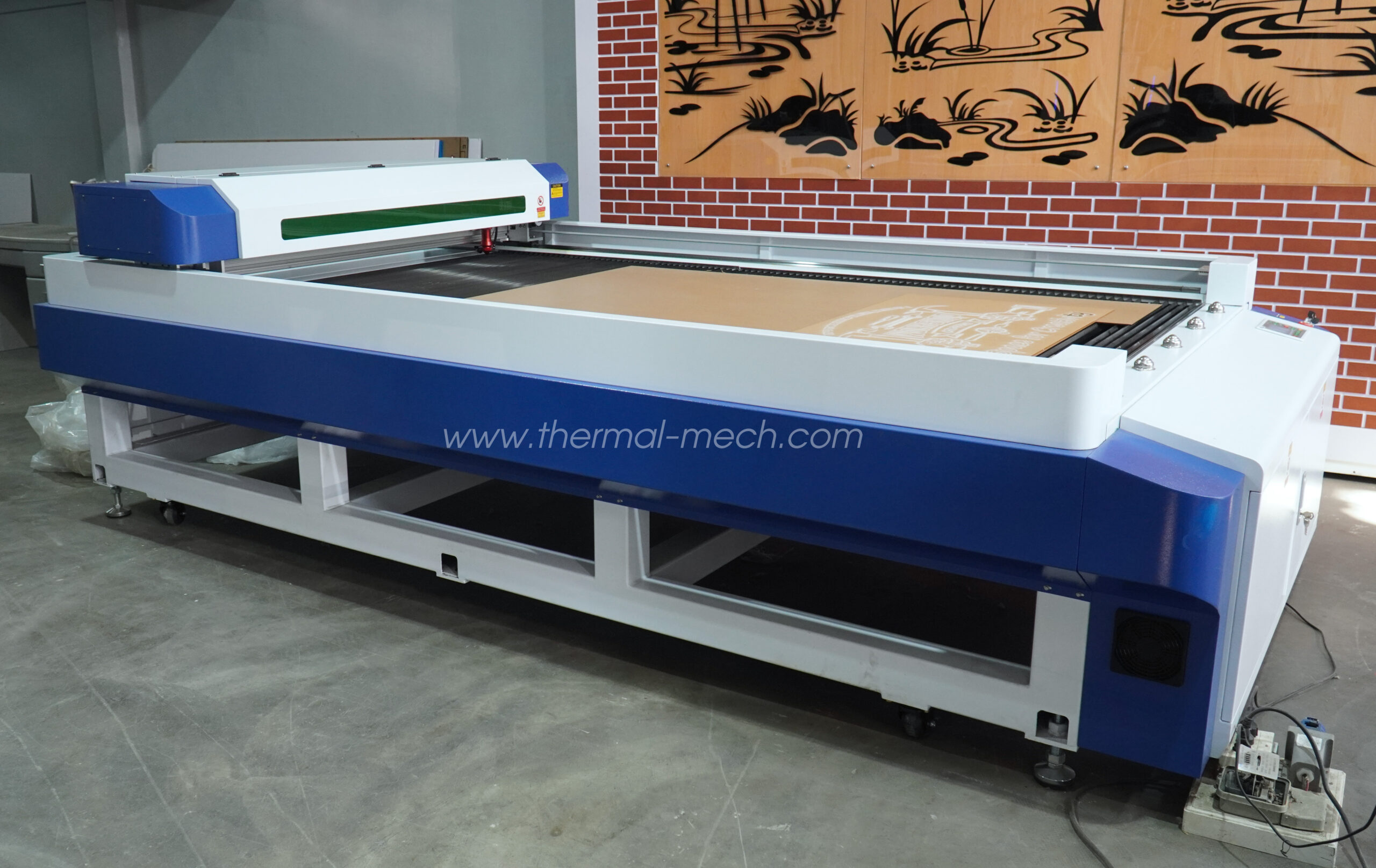

The Thermatech TM1325 is a heavy-duty industrial CO₂ laser machine engineered to meet the demanding requirements of modern manufacturing. Combining high precision, exceptional speed, and long-term operational stability, this dual-function machine seamlessly integrates both cutting and engraving capabilities into a single system—optimizing production workflows and eliminating repetitive setup steps.

Equipped with a Sealed CO₂ Laser Tube operating at a wavelength of 10,600 nm, the TM1325 delivers high-quality, uniform laser energy ideal for processing a wide variety of non-metal materials. To suit diverse material thicknesses and production requirements, the machine is available with multiple laser power options: 100W, 130W, 150W, 180W, and up to 300W.

To accommodate mid-to-large-scale operations and offer maximum production flexibility, the machine features a spacious working area available in three configurations:

• 1,300 x 2,500 mm
• 1,600 x 2,500 mm
• 1,600 x 3,000 mm

Key Features & Technical Highlights

• Superior Speed and Precision: * Cutting speed range: 0–600 mm/min
  • Engraving speed: up to 60,000 mm/min
  • Repositioning accuracy: $\pm$0.05 mm, ensuring consistent, high-quality output while minimizing material waste.

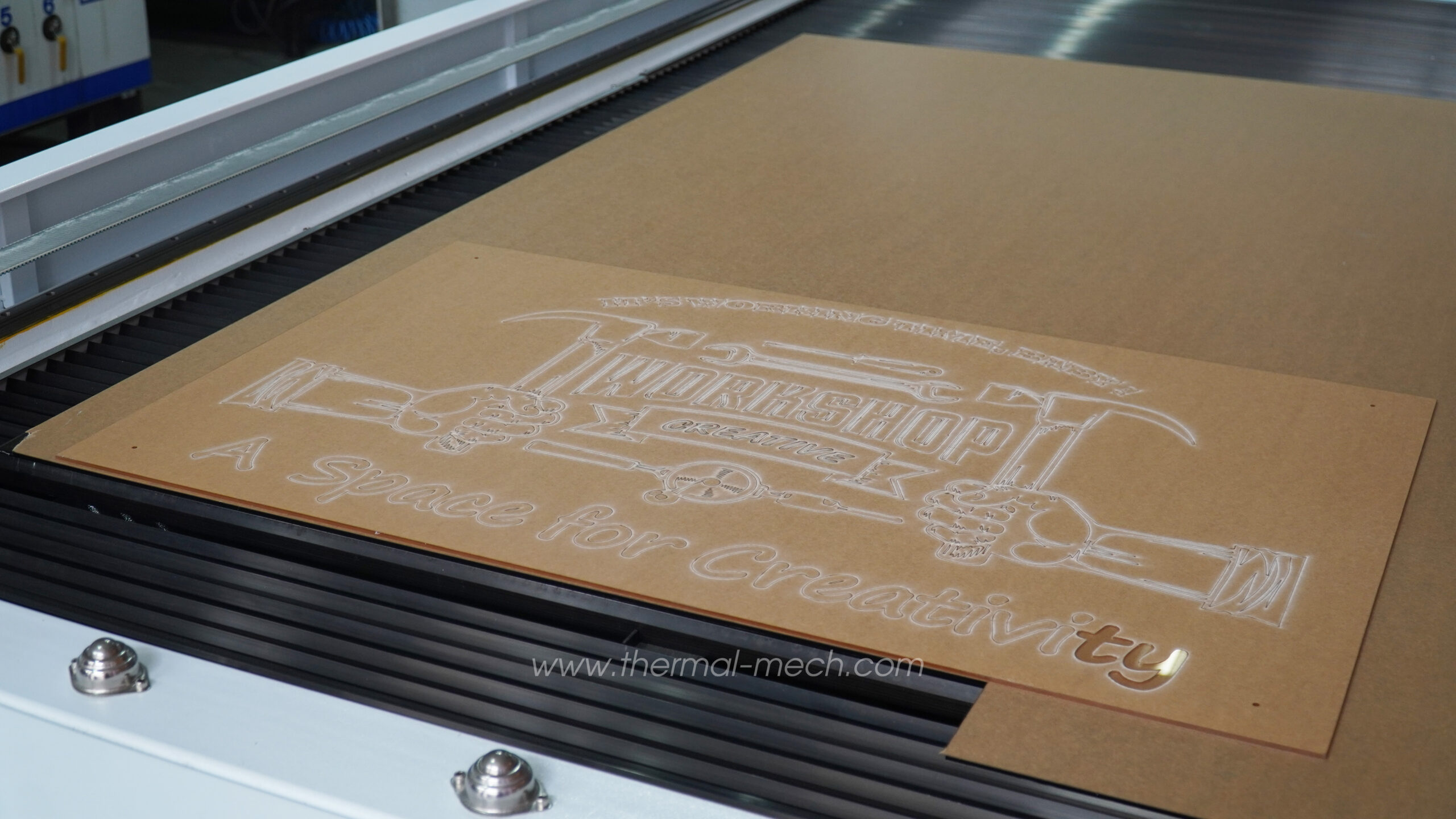

  • Capable of micro-engraving fine text and details as small as 1.5 x 1.5 mm.
• Dynamic Following Focus System: Features a real-time autofocus tracking system that continuously adjusts to the material’s surface topography. This guarantees a constant, optimal focal distance across the entire cutting path, delivering clean, sharp edges even on uneven surfaces or varying material thicknesses.
• Industrial-Grade Water Cooling Chiller: Equipped with a high-efficiency industrial water chiller to maintain a stable operational temperature. The system includes an integrated automatic water level alarm, proactively mitigating the risk of laser tube damage and enabling continuous, heavy-duty operation.
• Rigid Motion and Drive Architecture: Utilizing premium Square Guide Rails coupled with a high-tensile belt drive system, the machine achieves vibration-free, highly precise laser head positioning, ensuring long-term mechanical stability.
• Intuitive Control & Software Compatibility: Features a user-friendly LCD interface and supports seamless data transmission via a USB interface. Laser power output can be finely modulated from 0% to 100% via software. It supports a broad array of industry-standard file formats—including PLT, DXF, DST, BMP, and AI—and offers native compatibility with popular design platforms such as AutoCAD and CorelDraw.

Industrial Applications

The Thermatech TM1325 is highly versatile and widely adopted across multiple manufacturing and creative sectors, including:

1. Signage & Advertising: Acrylic fabrication, custom lettering, and display panels.
2. Leather & Textiles: Intricate pattern perforation, fabric cutting, and engraving.
3. Arts, Crafts & Premium Gifts: High-end personalized engraving and creative decoration.
4. Architectural Modeling & Prototyping: Structural scale models and industrial prototype development.
5. Packaging & Die-Cutting: Precision box design, cardboard templates, and plastics.
6. Interior Decoration & Electrical Components: Custom furniture accents and non-conductive technical components.
