Description

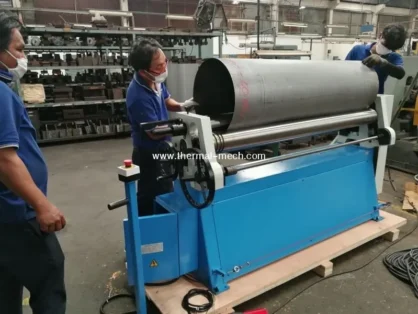

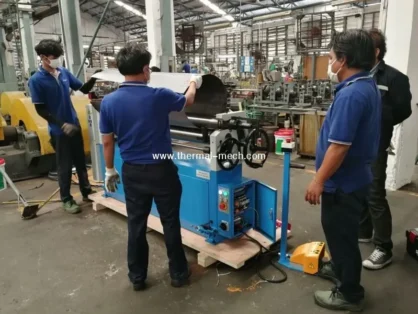

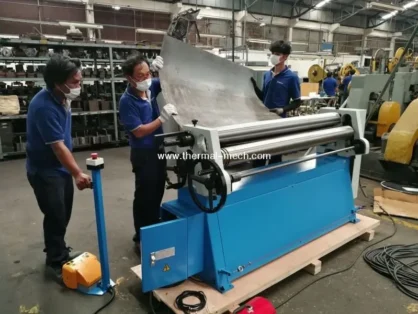

Electric Slip Roll Machine ESR-1550×3.5
Feature
- Asymmetrical roll bending machine with 3 high strength steel rolls
- Standard series wire core groove
- Supplied with conical bending feature
- Top roll swing out across cam lock
- Fixed top roller, adjustable lower and rear rollers
Specifications
| MODEL | The max. Thickness of the roll (mm.) | The max. Width of the roll (mm.) | Roller diameter (mm.) | Motor |
|---|---|---|---|---|
| ESR-1300×2.5 | 2.5 | 1300 | 90 | 1.5 |
| ESR-1300×4.5 | 4.5 | 1300 | 120 | 2.2 |
| ESR-1550×3.5 | 3.5 | 1550 | 120 | 2.2 |
| ESR-2020×3.5 | 3.5 | 2020 | 127 | 4.0 |
| ESR-1300×6.5 | 6.5 | 1300 | 150 | 3.0 |
| ESR-2070×2.5 | 2.5 | 2070 | 120 | 2.2 |
| ESR-2070×3.5 | 3.5 | 2070 | 127 | 3.0 |
