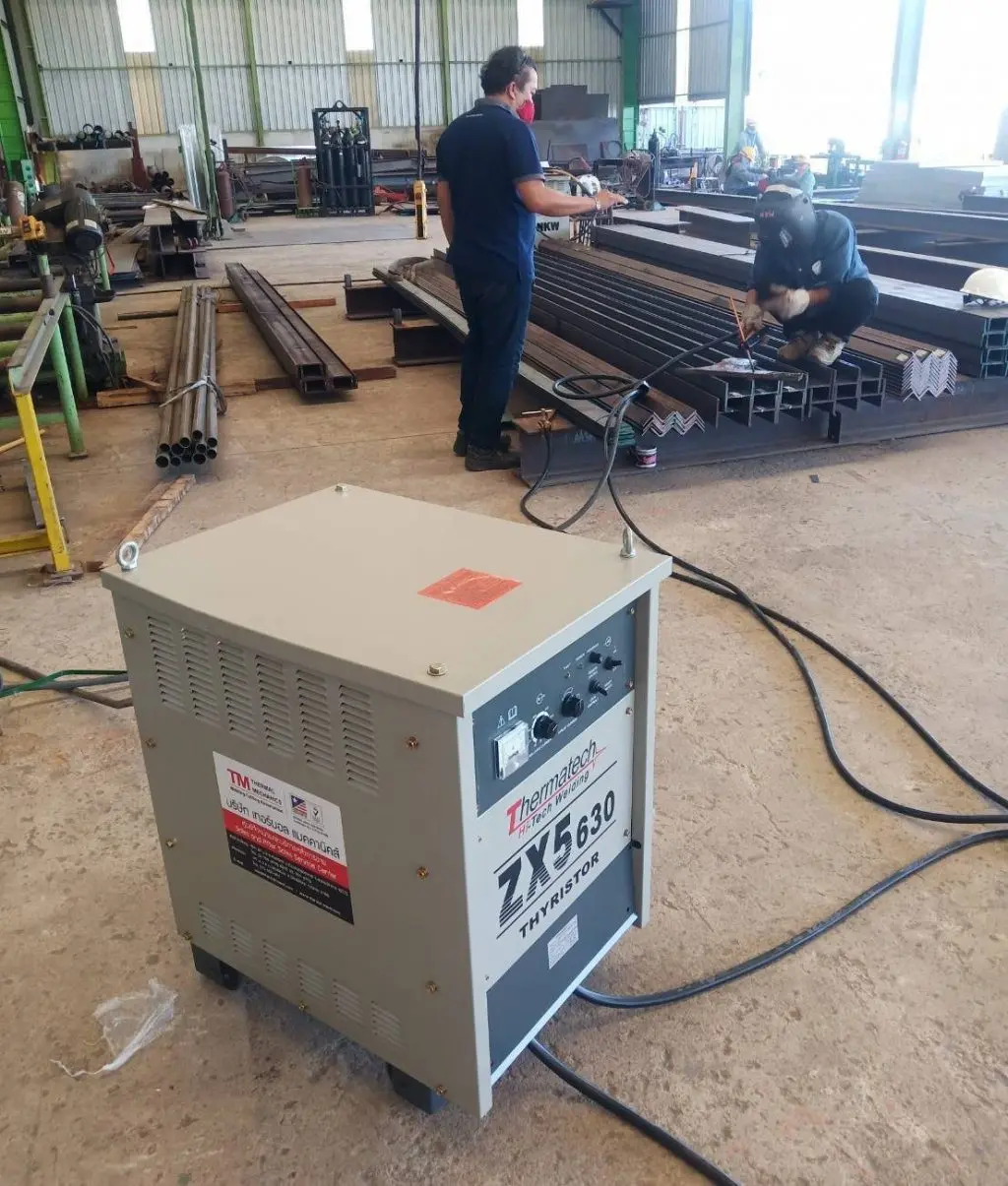

Thermatech Air Carbon Arc Gouging Machine
Thermatech Air Carbon Arc Gouging Machine
Equipment Features
- Strong grid automatic compensation capacity, widely application areas.

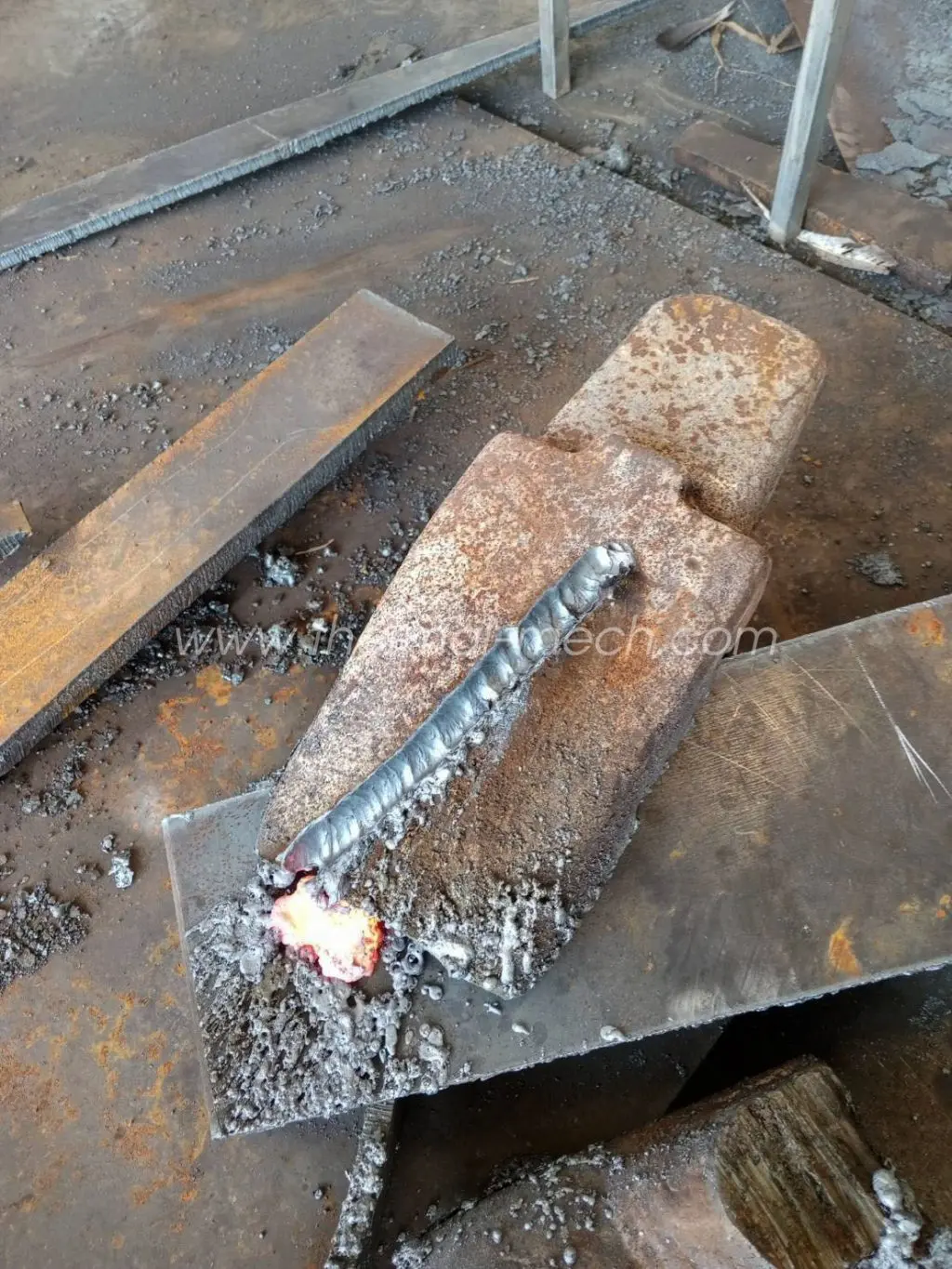

- Excellent dynamic characteristics curve, low-spatter welding, high efficiency and excellent weld.
- Super widely current adjustment range.
- Through thrust current adjustment, it can prevent the welding electrode from being adhered to
- the work piece.
- With wireless remote control device, easy current adjustment, especially suitable for long distance and high-altitude operation.
Specification

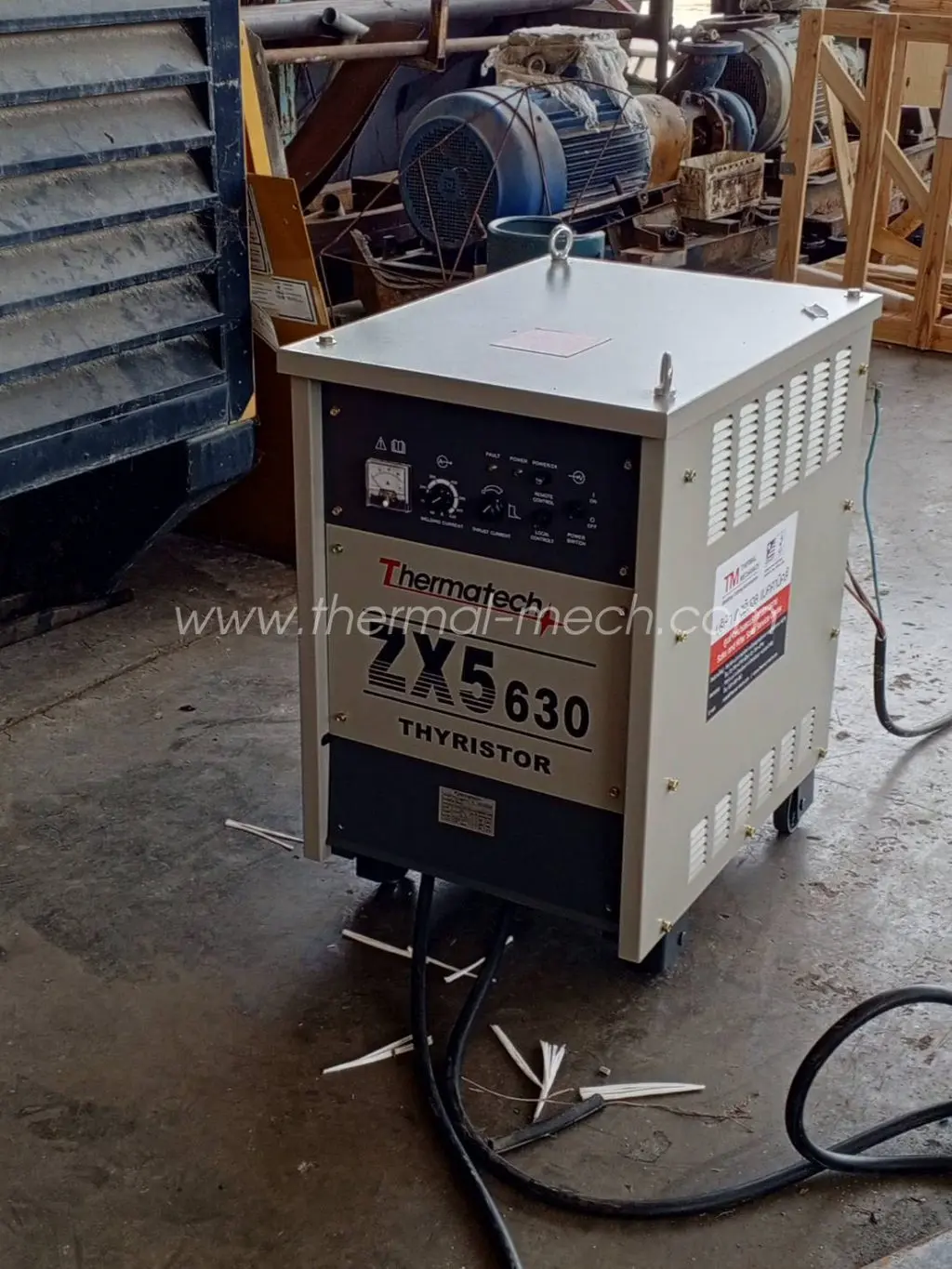

| Model | ZX5-630 |
| Input Power Source | 3 phase 380 V+10% 50 Hz. |
| Rated input current (A) | 70 |
| Rated input power (KVA) | 46 |
| Open circuit voltage (V) | 76 |
| Rated welding current (A) | 80-630 |
| Rated duty cycle (%) | 60 |
| Dimension L x W x H (mm) | 730X 530X880 |
| Net weight (Kg) | 268 |
