Description

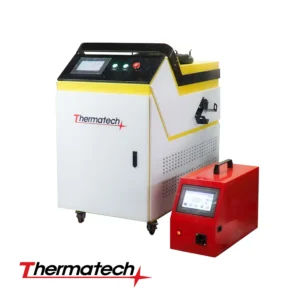

Raytools Fiber Laser Hand Held Welding
Technical Data
| Model | OLE-HW1000 | OLE-HW1500 | OLE-HW2000 |
| Laser | Raycus (Reci optional) |
Raycus (Reci optional) |
Raycus (Reci optional) |
| Laser Power | 1000w | 1500w | 2000w |
| Laser Wavelength | 1080nm | 1080nm | 1080nm |
| Fiber Length | 10m | 10m | 10m |
| Fiber Core | 50um | 50um | 50um |
| Welding Speed | 0-120mm/s | ||
| Welding Style | Wobble | ||
| Wobbling Diameter | 1.7mm (CL60mm/FL125mm) or 2.0mm (CL60mm/FL150mm) | ||
| Welding Seam Width | 2mm | ||
| Welding thickness | 3mm (MS/SS), 2mm (AL) based on 1500W laser | ||
| Cooling | Water cooling | ||
| Cover glass | Φ20mm *3mm | ||
| Collimation Length | 60mm | ||
| Focus Length | 125mm or 150mm | ||
| Power Supply | 220V/Single Phase/50 or 60Hz | 380V/3-Phase/50 or 60Hz | |
| Overall Dimension | 1053x800x1225mm (LxWxH) | ||
| Weight | ~ 235k | ~ 250kg | ~ 280kg |
| Wire Feeder | Optional | ||
| Wire Diameter | 0.8/1.0mm/1.2/1.6mm | ||
| Wire Feeding Speed | 3-12m/min | ||
| Wire Material | Copper/SS/AL | ||
| Power Supply | DC24V/5A | ||
Specifications subject to change without notice.
