Thermatech Fiber Laser Welding Robot, TMR-II-FBL-1500MX, 1.4 m, payload 6 kg.
Thermatech Laser Welding Robot TMR-II FBL-1500MX | TM Robotics
For precision sheet metal processing, enclosure manufacturing, automotive assembly, and stainless steel fabrication, the Thermatech Laser Welding Robot (Model TMR-II FBL-1500MX / 21-TMR-II-FBL-1.8M) delivers an automated fiber laser joining system engineered for high-volume productivity and sub-millimeter seam accuracy.
The Thermatech Laser Welding Robot features a 6-axis robot arm with an expansive 1,840 mm working reach and ±0.08 mm motion repeatability. It seamlessly integrates with continuous-wave fiber laser generators available in 1500W (RL-F1500W), 2000W (RL-F2000W), and 3000W (RL-F3000W) configurations. Paired with a dual-axis water-cooled laser head featuring a 4.3-inch control screen, the system welds Carbon Steel (CS), Stainless Steel (SS), Aluminum (AL), and Copper (CU) with deep penetration and minimal heat dissipation.
With IP56 (J1-J2 axes) and IP67 (J3-J6 axes) ingress protection ratings, this robotic system is built for heavy-duty industrial shop floors. Its versatile mounting design allows for floor, stand, or inverted (upside-down) setups to maximize cell floor space.
TM Robotics Solutions provides single-source turnkey integration for the Thermatech Laser Welding Robot—managing everything from custom jig/fixture engineering and laser safety cell fabrication to motion programming, PLC communication, and technical maintenance.
Technical Highlights of the Thermatech Laser Welding Robot (TMR-II FBL-1500MX)
Optimize industrial metal joining with high-performance automated fiber laser welding:
- High-Speed & Consistent Weld Seams: The Thermatech Laser Welding Robot executes 3D welding trajectories rapidly, producing uniform, repeatable welds on every part.
- Low Heat Input & Zero Deformation: Precision laser energy prevents warping and burn-through on thin metal sheets.
- Eliminates Secondary Finishing: Produces spatter-free, aesthetic weld beads that do not require grinding or polishing.
- Turnkey Engineering by TM Robotics Solutions: Includes custom Jigs & Fixtures, laser safety enclosure setup, system programming, and technical maintenance.
Contact Us & Inquiries:
✅LINE OA: @thermalmechanics
📧Email: sales@thermal-mech.com
☎️Tel: 02-759-4795 or 064-253-6405
- Description
-
Thermatech Fiber Laser Welding Robot, TMR-II-FBL-1500MX, 1.4 m, payload 6 kg.
Thermatech Laser Welding Robot TMR-II FBL-1500MX | TM Robotics
For precision sheet metal processing, enclosure manufacturing, automotive assembly, and stainless steel fabrication, the Thermatech Laser Welding Robot (Model TMR-II FBL-1500MX / 21-TMR-II-FBL-1.8M) delivers an automated fiber laser joining system engineered for high-volume productivity and sub-millimeter seam accuracy.
The Thermatech Laser Welding Robot features a 6-axis robot arm with an expansive 1,840 mm working reach and ±0.08 mm motion repeatability. It seamlessly integrates with continuous-wave fiber laser generators available in 1500W (RL-F1500W), 2000W (RL-F2000W), and 3000W (RL-F3000W) configurations. Paired with a dual-axis water-cooled laser head featuring a 4.3-inch control screen, the system welds Carbon Steel (CS), Stainless Steel (SS), Aluminum (AL), and Copper (CU) with deep penetration and minimal heat dissipation.
With IP56 (J1-J2 axes) and IP67 (J3-J6 axes) ingress protection ratings, this robotic system is built for heavy-duty industrial shop floors. Its versatile mounting design allows for floor, stand, or inverted (upside-down) setups to maximize cell floor space.
TM Robotics Solutions provides single-source turnkey integration for the Thermatech Laser Welding Robot—managing everything from custom jig/fixture engineering and laser safety cell fabrication to motion programming, PLC communication, and technical maintenance.
Technical Highlights of the Thermatech Laser Welding Robot (TMR-II FBL-1500MX)
Optimize industrial metal joining with high-performance automated fiber laser welding:
- High-Speed & Consistent Weld Seams: The Thermatech Laser Welding Robot executes 3D welding trajectories rapidly, producing uniform, repeatable welds on every part.
- Low Heat Input & Zero Deformation: Precision laser energy prevents warping and burn-through on thin metal sheets.
- Eliminates Secondary Finishing: Produces spatter-free, aesthetic weld beads that do not require grinding or polishing.
- Turnkey Engineering by TM Robotics Solutions: Includes custom Jigs & Fixtures, laser safety enclosure setup, system programming, and technical maintenance.
Contact Us & Inquiries:
✅LINE OA: @thermalmechanics
📧Email: sales@thermal-mech.com
☎️Tel: 02-759-4795 or 064-253-6405
- Gallery
-
- Video
-

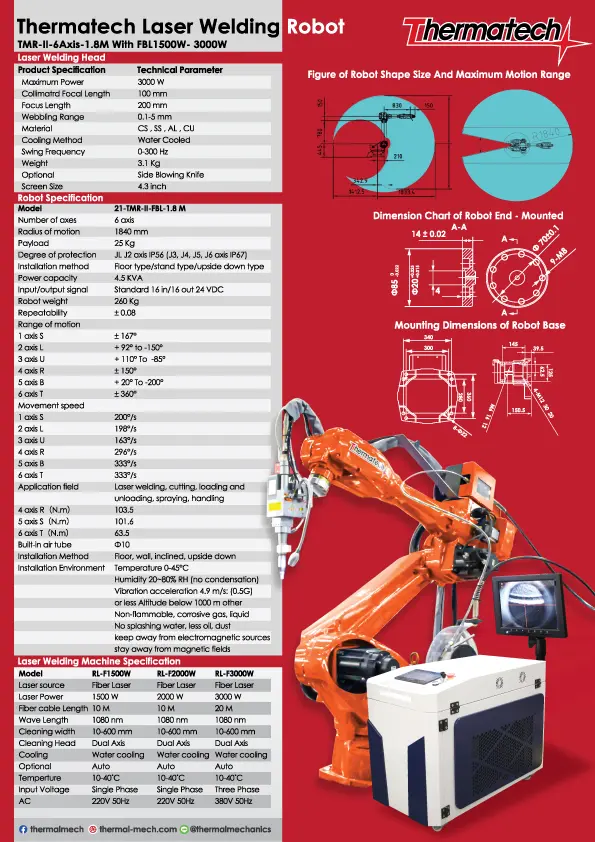

Technical Specifications: Thermatech Laser Welding Robot Thermatech (TMR-II Series)
| Technical Parameter | Specification Details |
|---|---|
| Robot Arm Model | 21-TMR-II-FBL-1.8M |
| Axes / Motion Radius | 6 แกน / 1,840 mm |
| Payload / Repeatability | 25 kg / ±0.08 mm |
| Laser Power Options | RL-F1500W (1500W) / RL-F2000W (2000W) / RL-F3000W (3000W) |
| Wobbling Range / Swing Frequency | 0.1 – 5 mm / 0 – 300 Hz |
| Degree of Protection | IP56 (J1, J2) / IP67 (J3, J4, J5, J6) |
| Installation Methods | ตั้งพื้น / ยึดขาตั้ง / เอียง / แขวนเพดาน |
🎯 Contact Us & Inquiries:
✅LINE OA: @thermalmechanics
📧Email: sales@thermal-mech.com
☎️Tel: 02-759-4795 หรือ 064-253-6405
FAQ: Frequently Asked Questions About Thermatech Laser Welding Robot (TMR-II FBL-1500MX)
Q: What are the main robotic parameters of the Thermatech Laser Welding Robot TMR-II FBL-1500MX?
A: The Thermatech Laser Welding Robot features a 6-axis arm with a 1,840 mm working radius, 25 kg payload capacity, and high repeatability of ±0.08 mm.
Q: What turnkey services are offered by TM Robotics Solutions for this system?
A: TM Robotics Solutions provides end-to-end integration including custom Jigs & Fixtures design, laser safety enclosure setup, robot trajectory programming, safety system engineering, and post-installation technical maintenance.
