Description

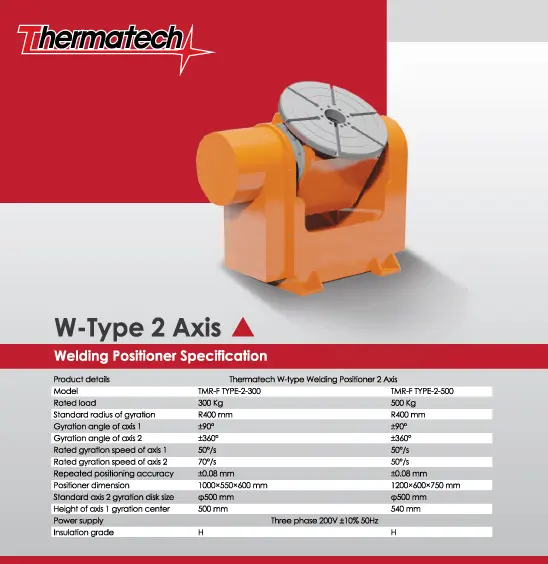

Thermatech W type Welding Positioner, 2 Axes
Platform Type Two Axis Servo Positioner, Thermatech W-Type Positioner
When automating robotic welding cells for complex assemblies, heavy tubular structures, or multi-angle metal fabrications, keeping the joint in a flat, downhand welding position is critical for joint penetration and seam quality. The W type Welding Positioner,2 Axes (Platform Type Two Axis Servo Positioner, Thermatech TMR-WTYPE-2 Series) provides an essential auxiliary motion system that rotates and tilts the workpiece in complete synchronization with the welding robot arm.
The W type Welding Positioner,2 Axes features two independent, high-precision motion axes. Axis 1 offers a tilting range of ±90 degrees at speeds up to 50 °/S, while Axis 2 provides a full 360-degree continuous rotation at speeds up to 70 °/S. Powered by AC servo motors coupled with RV precision reducers, this positioner delivers high positioning rigidity and exceptional repeatability of ±0.08 mm.
Built from stress-relieved steel components, the positioner features a φ500 mm turntable faceplate designed to support heavy jigs and workpieces. Available in two distinct models—the 300 kg capacity model (TMR-WTYPE-2-300) and the 500 kg capacity model (TMR-WTYPE-2-500)—it incorporates heavy-duty welding current grounding systems to protect onboard servo encoders and control electronics from electrical arc interference.
TM Robotics Solutions provides comprehensive integration for the W type Welding Positioner,2 Axes, managing everything from custom tooling design and coordinated multi-axis trajectory programming to safety enclosure integration and technical commissioning.
PRODUCT DETAILS
Item TMR- WTYPE-2-300 TMR- WTYPE-2-500
Rated load 300 kg 500 kg
Standard radius of gyration R400 mm R400 mm
Gyration angle of axis 1 ±90 ° ±90 °
Gyration angle of axis 2 ±360 ° ±360 °
Rated gyration speed of axis 1 50 °/S 50 °/S
Rated gyration speed of axis 2 70 °/S 50 °/S
Repeated positioning accuracy ±0.08 mm ±0.08 mm
Positioner dimension 1000×550×600mm 1200×600×750mm
Standard axis 2 gyration disk size φ500 mm φ500 mm
Height of axis 1 gyration center 500 mm 540 mm
Power supply Three phase 200V ±10% 50Hz
Insulation grade H H
- Description
-
Thermatech W type Welding Positioner, 2 Axes
Platform Type Two Axis Servo Positioner, Thermatech W-Type Positioner
When automating robotic welding cells for complex assemblies, heavy tubular structures, or multi-angle metal fabrications, keeping the joint in a flat, downhand welding position is critical for joint penetration and seam quality. The W type Welding Positioner,2 Axes (Platform Type Two Axis Servo Positioner, Thermatech TMR-WTYPE-2 Series) provides an essential auxiliary motion system that rotates and tilts the workpiece in complete synchronization with the welding robot arm.
The W type Welding Positioner,2 Axes features two independent, high-precision motion axes. Axis 1 offers a tilting range of ±90 degrees at speeds up to 50 °/S, while Axis 2 provides a full 360-degree continuous rotation at speeds up to 70 °/S. Powered by AC servo motors coupled with RV precision reducers, this positioner delivers high positioning rigidity and exceptional repeatability of ±0.08 mm.
Built from stress-relieved steel components, the positioner features a φ500 mm turntable faceplate designed to support heavy jigs and workpieces. Available in two distinct models—the 300 kg capacity model (TMR-WTYPE-2-300) and the 500 kg capacity model (TMR-WTYPE-2-500)—it incorporates heavy-duty welding current grounding systems to protect onboard servo encoders and control electronics from electrical arc interference.
TM Robotics Solutions provides comprehensive integration for the W type Welding Positioner,2 Axes, managing everything from custom tooling design and coordinated multi-axis trajectory programming to safety enclosure integration and technical commissioning.
PRODUCT DETAILS
Item TMR- WTYPE-2-300 TMR- WTYPE-2-500
Rated load 300 kg 500 kg
Standard radius of gyration R400 mm R400 mm
Gyration angle of axis 1 ±90 ° ±90 °
Gyration angle of axis 2 ±360 ° ±360 °
Rated gyration speed of axis 1 50 °/S 50 °/S
Rated gyration speed of axis 2 70 °/S 50 °/S
Repeated positioning accuracy ±0.08 mm ±0.08 mm
Positioner dimension 1000×550×600mm 1200×600×750mm
Standard axis 2 gyration disk size φ500 mm φ500 mm
Height of axis 1 gyration center 500 mm 540 mm
Power supply Three phase 200V ±10% 50Hz
Insulation grade H H
- Gallery
-
- Video
-
FAQ: Frequently Asked Questions About W type Welding Positioner,2 Axes
Q: What is the main advantage of using a W type Welding Positioner,2 Axes in a robot cell?
A: The W type Welding Positioner,2 Axes repositions complex workpieces automatically through tilting (±90°) and rotation (360°), keeping weld seams in the ideal flat downhand position to prevent weld pool sagging and ensure maximum joint quality.
Q: What services does TM Robotics Solutions offer for positioner installation?
A: TM Robotics Solutions offers complete turnkey integration, including custom fixture design on the φ500 mm turntable faceplate, synchronized motion programming between the positioner and robot controller, grounding safety setup, and ongoing technical maintenance.
