Description

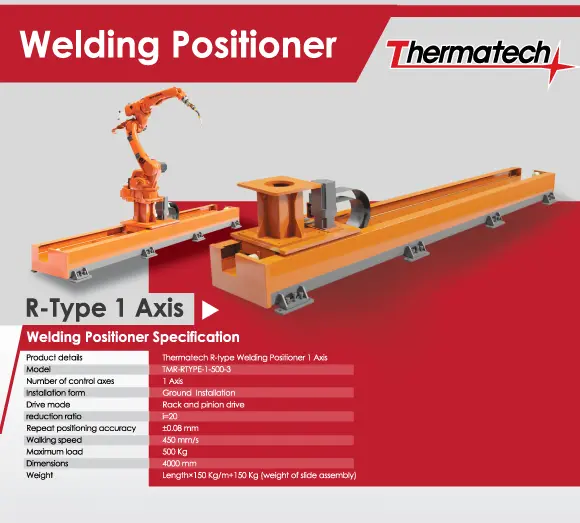

Thermatech R type Welding Positioner, 1 Axis
Robot Walking Rail 3m | Thermatech R-type Welding Positioner | TM Robotics Solutions
When automating welding, cutting, spraying, or material handling processes for long structural components, large control cabinets, or extended automotive frames, standard robot arm reach reach limits can create significant bottlenecks. Integrating the Robot Walking Rail 3m—featuring the Thermatech R-type Welding Positioner 1-Axis (Model TMR-RTYPE-1-500-3)—provides an essential external 7th axis solution that expands the operational envelope of your industrial robot arm.
The Thermatech R-type Welding Positioner is engineered for ground installation, utilizing a robust Rack and Pinion drive system with a gear reduction ratio of i=20. With an overall structure length of 4,000 mm, it delivers a effective 3-meter linear working travel distance. The high-torque slide mechanism achieves rapid linear motion speeds up to 450 mm/s while maintaining strict repeat positioning accuracy of ±0.08 mm. Designed to carry heavy robotic equipment, the platform supports a maximum payload capacity of 500 kg.
By synchronizing the linear rail movement with the robot controller, the Robot Walking Rail 3m enables seamless coordinated motion. This allows a single articulated robot arm to service multiple workstations, perform uninterrupted long-seam laser or MIG/TIG welding, or handle extended material transfers across the factory floor.
TM Robotics Solutions offers end-to-end engineering services for the Thermatech R-type Welding Positioner, managing everything from foundation alignment and electrical integration to synchronized trajectory programming and safety system installation.
PRODUCT DETAILS
Model TMR-RTYPE-1-500-3
Number of control axes 1 axis
Installation form Ground Installation
Drive mode Rack and pinion drive
reduction ratio i=20
Repeat positioning accuracy ±0.08mm
Walking speed 450mm/s
Maximum load 500kg
Dimensions 4000mm
Weight Length×150kg/m+150kg (weight of slide assembly)
🎯 Contact Us & Inquiries
✅LINE OA: @thermalmechanics
📧Email: sales@thermal-mech.com
☎️Tel: 02-759-4795 หรือ 064-253-6405
- Description
-
Thermatech R type Welding Positioner, 1 Axis
Robot Walking Rail 3m | Thermatech R-type Welding Positioner | TM Robotics Solutions
When automating welding, cutting, spraying, or material handling processes for long structural components, large control cabinets, or extended automotive frames, standard robot arm reach reach limits can create significant bottlenecks. Integrating the Robot Walking Rail 3m—featuring the Thermatech R-type Welding Positioner 1-Axis (Model TMR-RTYPE-1-500-3)—provides an essential external 7th axis solution that expands the operational envelope of your industrial robot arm.
The Thermatech R-type Welding Positioner is engineered for ground installation, utilizing a robust Rack and Pinion drive system with a gear reduction ratio of i=20. With an overall structure length of 4,000 mm, it delivers a effective 3-meter linear working travel distance. The high-torque slide mechanism achieves rapid linear motion speeds up to 450 mm/s while maintaining strict repeat positioning accuracy of ±0.08 mm. Designed to carry heavy robotic equipment, the platform supports a maximum payload capacity of 500 kg.
By synchronizing the linear rail movement with the robot controller, the Robot Walking Rail 3m enables seamless coordinated motion. This allows a single articulated robot arm to service multiple workstations, perform uninterrupted long-seam laser or MIG/TIG welding, or handle extended material transfers across the factory floor.
TM Robotics Solutions offers end-to-end engineering services for the Thermatech R-type Welding Positioner, managing everything from foundation alignment and electrical integration to synchronized trajectory programming and safety system installation.
PRODUCT DETAILS
Model TMR-RTYPE-1-500-3
Number of control axes 1 axis
Installation form Ground Installation
Drive mode Rack and pinion drive
reduction ratio i=20
Repeat positioning accuracy ±0.08mm
Walking speed 450mm/s
Maximum load 500kg
Dimensions 4000mm
Weight Length×150kg/m+150kg (weight of slide assembly)
🎯 Contact Us & Inquiries
✅LINE OA: @thermalmechanics
📧Email: sales@thermal-mech.com
☎️Tel: 02-759-4795 หรือ 064-253-6405
- Gallery
-
- Video
-
FAQ: Frequently Asked Questions About Robot Walking Rail 3m & Thermatech R-type Welding Positioner
Q: What are the main benefits of adding the Robot Walking Rail 3m to a robotic cell?
A: The Robot Walking Rail 3m acts as a 7th external axis, allowing a single robot to traverse across a 3-meter path to weld long workpieces or service multiple stations, maximizing equipment utilization.
Q: What integration services does TM Robotics Solutions provide for the Thermatech R-type Positioner?
A: TM Robotics Solutions provides complete turnkey installation, including floor alignment and anchoring, cable carrier integration, robot motion synchronization, safety fencing setup, and full technical commissioning.
